Features

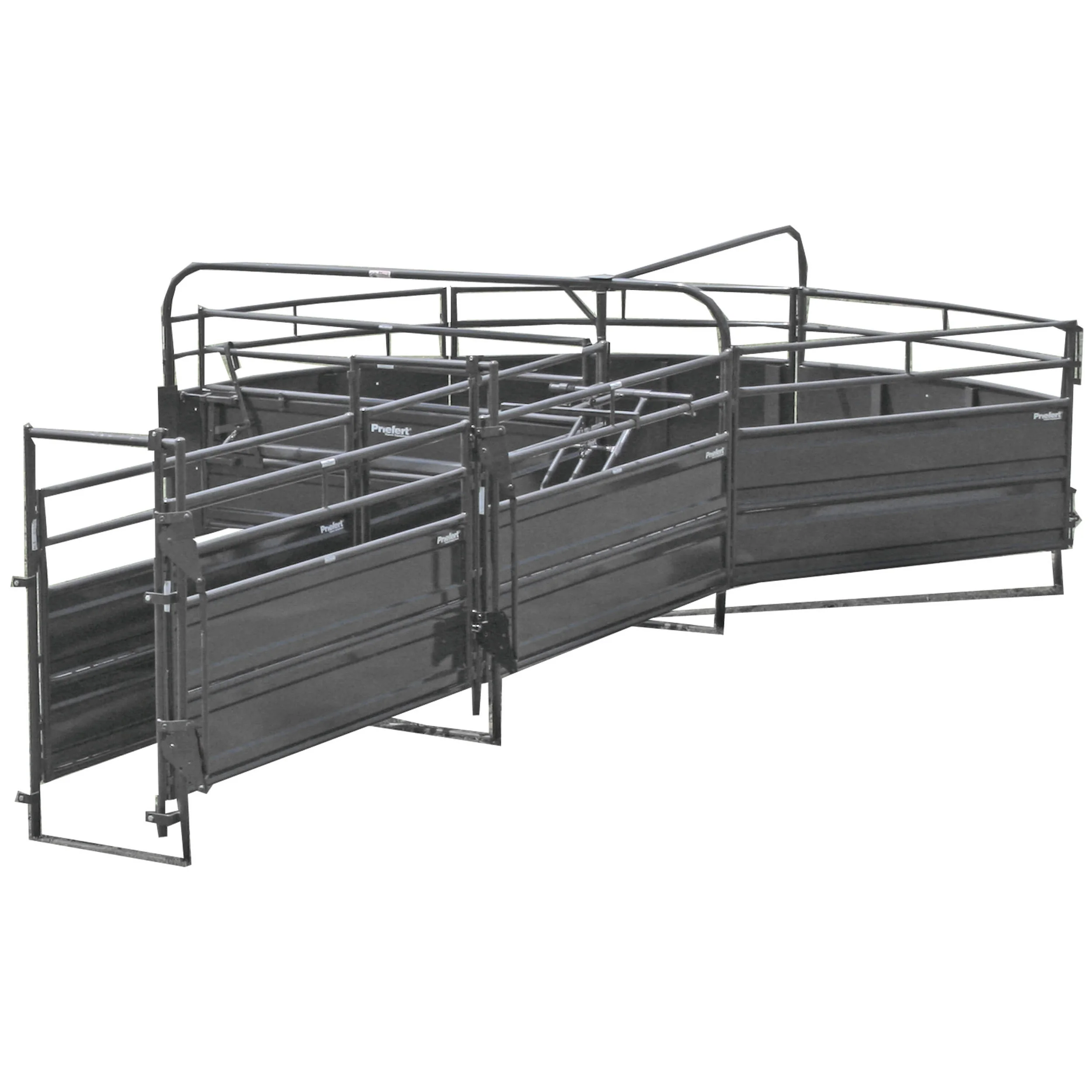

• The SS-4 is great for permanent operations and has several unique, practical features not found in most other solid sweeps.

• 135 degree sweep is easily reversible so that cattle can be loaded from either side of the working alley, and can be expanded into a complete corral system with the purchase of additional pieces.

• The Sheeted Bow Gate includes the sweeping gate, an alley frame that serves as the initial opening into the crowding alley, and a spring loaded Double Piston Lever Latch.

• By pivoting our 10’ wide sweeping bow gate at the inside corner of the alley entrance, livestock flow is improved by eliminating corners that are found in other sweep systems.

• Our Sheeted Curve Panels are specially designed to create our sweep tub and each includes three vertical blocking points that allow the sweep gate to latch. These stops help prevent cattle from pushing the sweep gate back when being crowded.

• Our Sheeted Alley Panels are open at the top to allow operators to perform “pour-on” application of insecticides, eliminating the need for costly catwalks and increasing the ease of use for the operator.

• The 20’ long alley can easily be lengthened by purchasing additional panels and alley frames.

• Priefert’s unique Adjustable Alley Frames allow operators to quickly and easily adjust the width of the working alley to better fit the size of cattle being work. The alley can be set to 18”, 21”, 25”, or 28” wide.

• Radius Bars work at ground level to maintain the constant and correct radius for the sweep and the Radius Bow provides support from overhead.

• The Adjustable Alley Frame with Chute Attachment allows for quick and easy attachment of your adjustable alley to a Priefert Squeeze Chute (sold separately). The SAAFC will attach directly to our Model S01, S0191, or S04 chute, while an additional adaptor is required for our Model SC13 Squeeze Chute.

• With no tools required, the effective height of the “no-back” Alley Stop can be quickly set to prevent the backing of bulls, cows, and calves.

• Architectural Grade Powder Coat Finish with UV inhibitors add years of life to your investment by helping the product resist rust, scratches and fading.

Specifications

• Alley Length: 20’

• Alley Frame Inside Height: 80”

• Bow Gate Frame Height: 7’ (approximate height)

• Panel Height: 6’

• Inside Alley Width: Adjustable to 18”, 21”, 25”, or 28”

• Architectural Grade Powder Coat Finish

• Color: Grey

• SS-4 includes: 1- Sheeted Bow Gate, 3- Sheeted Curve Panels, 3- Radius Bars, 1- Radius Bow, 1- Sheeted Straight Sweep Panel, 4- 10’ Sheeted Alley Panels, 1- Sheeted Adjustable Alley Frame, 1- Adjustable Alley Frame with Chute Attachment, 1- “no-back” Alley Stop
