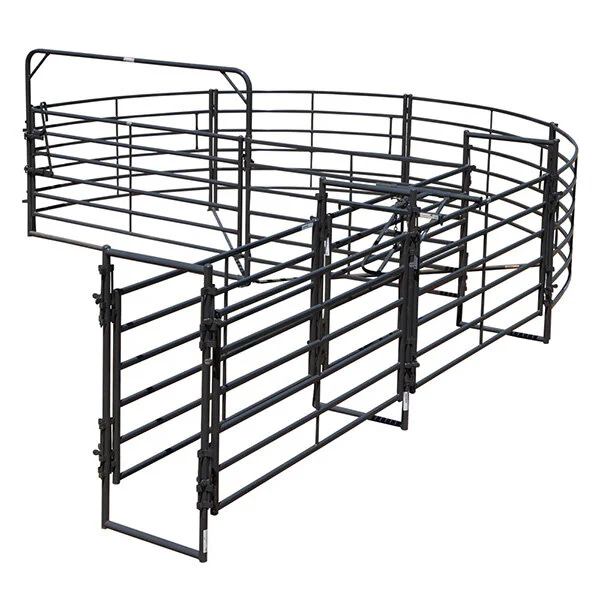

180 Degree Premier Sweep w/ 16' Alley

180 Degree Premier Sweep w/ 16' Alley

$4,724.00

This 180 degree sweep tub includes a 16’ alley. This basic setup serves as a great starter system that is completely reversible and easily expandable.

180 Degree Premier Sweep w/ 16' Alley

This rugged, completely reversible crowding system can be used as part of a permanent or portable working corral and can be easily expanded upon to accommodate larger herd sizes. It provides a durable and affordable crowding system that helps reduce the labor needed for working cattle. This system is built with Premier Panels, our number one selling cattle panel, constructed from our patented Quadraform™ tubing to allow for maximum strength and flexibility. Each panel features single piece vertical stays fitted through drilled rails to further increase the structural integrity. Sturdy pin connectors are used to assemble the tub and alley components. The Alley Frames maintain the strength and support of the 28” wide alley and the “no-back” Alley Stop can be easily adjusted to prevent cattle from backing out of the alley. The attractive and durable Architectural Grade Powder Coat Finish with UV inhibitors will add years of life to your investment by helping this system resist rust, scratches and fading.

Quantity:
Add To Cart

Features

  • This Premier Open Sweep is great for permanent corrals and versatile enough for portable applications.

  • This 180 degree sweep is easily reversible so that cattle can be loaded from either side of the working alley, and can be expanded into a complete corral system with the purchase of additional pieces.

  • “Tough Enough for Cattle, Safe Enough for Horses,” this sweep is constructed from our number one selling cattle panel, the Premier Panel.

  • Premier Panels are constructed from our patented Quadraform™ tubing to allow for maximum strength and flexibility. These panels feature single piece drilled stays to provide extra stability.

  • Sturdy pin connectors provide secure connection points that allow for quick and easy assembly of the sweep tub.

  • The 10’ wide sweep gate pushes cattle into the working alley. This gate features a 7’ tall bow frame for added stability and a Double Piston Lever Latch.

  • Two powder-coated Alley Frames help maintain the strength and support of the 28” wide fixed alley.

  • With no tools required, the effective height of the “no-back” Alley Stop can be quickly set to prevent the backing of bulls, cows, and calves.

  • Architectural Grade Powder Coat Finish with UV inhibitors add years of life to your investment by helping the product resist rust, scratches and fading.


Specs

  • Alley Length: 16’

  • Alley Frame Inside Height: 74.75”

  • Panel Height: 64”

  • Inside Alley Width: 28”

  • Bow Gate Frame Height: 7’ (approximate height)

  • Premier Sweep Gate constructed from 2” OD Round 16 gauge tubing with 1.050” OD single piece vertical stay, bow frame constructed from 2.375” OD 12 gauge tubing.

  • Sweep panels constructed from 16 gauge Quadraform™ tubing

  • PS20-4 includes: 1- Premier Sweep Bow Gate (PSBG20), 1- Premier Panel with Alley Frame (PPWAF20), 4 - Premier Curve Panels (PCP20), 3- Sheeted Sweep Radius Bars (SSRB), 4- Premier Alley Panels (PAP20), 2- Alley Frames (AF20), and 1- Universal Alley Stop (ASU)

  • Architectural Grade Powder Coat Finish

  • Color: Grey
