RS Open Sweep w/38' Adj. Alley, Preg Panels, Block Gates & Scale Section - RSOS-9
RS Open Sweep w/38' Adj. Alley, Preg Panels, Block Gates & Scale Section - RSOS-9
This setup adds an 8’ section of alley and another Alley Gate to the RSOS-8 to create a space for a single animal scale in the alley way.

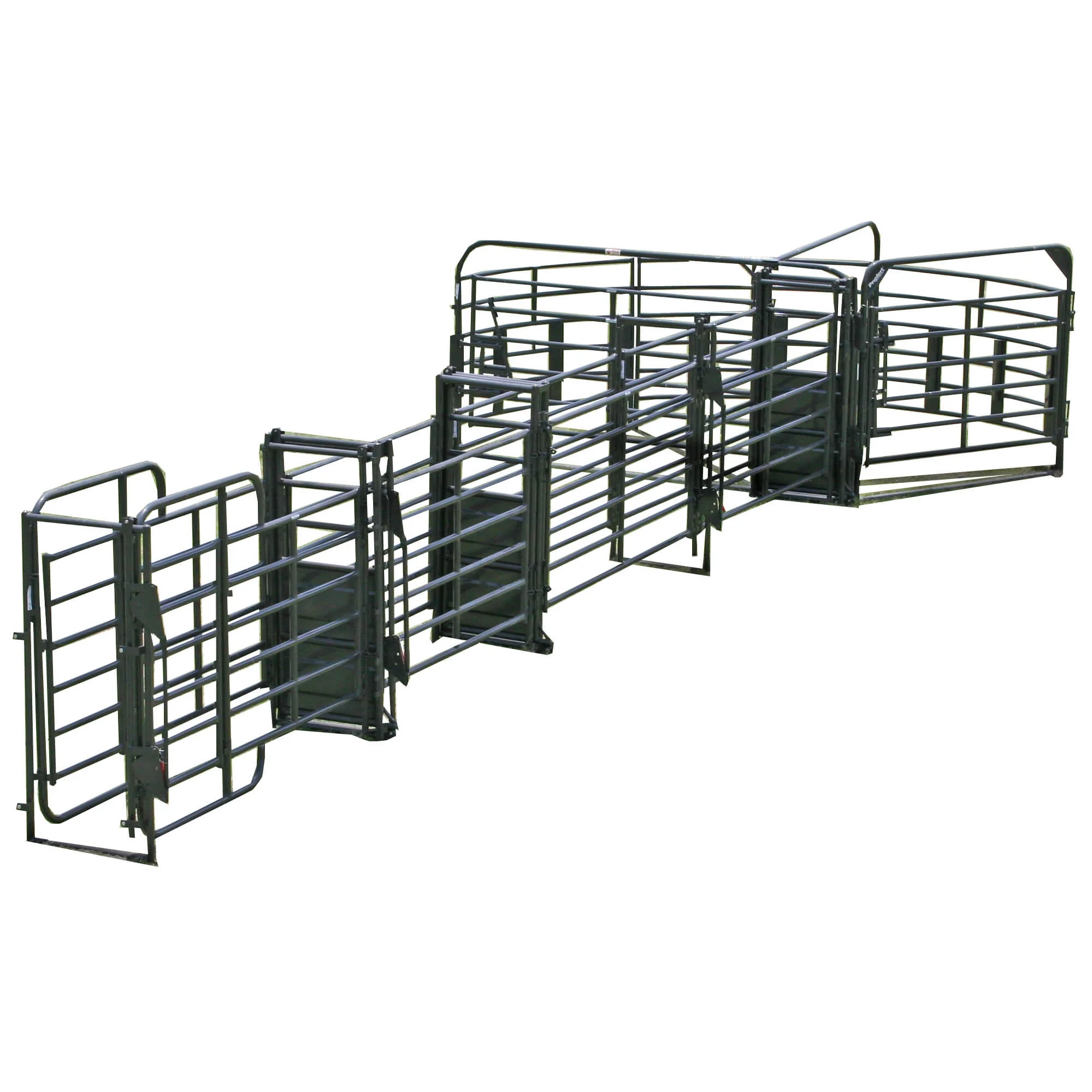

RSOS-9 Sweep w/38' Adj. Alley, Preg Panels, Block Gates & Scale Section
This heavy duty, completely reversible crowding system includes a 135 degree sweep with a 38’ working alley. Very similar to our RSOS-8, this system also includes an 8’ section of alley designed to work with a scale platform (scale system sold separately). Whether you plan to use this as part of a permanent installation or as a portable working corral, the RSOS-9 helps reduce the labor needed for working cattle. This system features an adjustable alley, two Rough Stock Open Preg Panels, blocking gates, and an 8’ sorting gate as part of the sweep. We also include an Adjustable Alley Frame with Chute Attachment to go at the end of the alley to make it quick and easy to attach a Priefert Squeeze Chute. The adjustable alley frames can be set to one of four widths to better fit the size of cattle being worked. The Preg Panels can be used to provide secure access for palpation or AI work, and can also double as sorting gates. The Sheeted Adjustable Alley Gates not only lend support to the alley structure, but also serves as heavy duty roll gates for blocking cattle. The 8’ sorting gate gives you the option to sort or load out cattle straight from the sweep, without crowding them down the alley. This system is constructed from our heaviest, most durable panels, Priefert Rough Stock Panels, to ensure that it can handle even the rankest cattle. The Architectural Grade Powder Coat Finish helps the product to resist rust, scratches, and fading to add years of life to your investment.
Features
The RSOS-9 is great for permanent corrals, but versatile enough for portable applications if desired.
135 degree sweep is easily reversible so that cattle can be loaded from either side of the working alley, and can be expanded into a complete corral system with the purchase of additional pieces.
By pivoting our 10’ wide sweeping bow gate at the inside corner of the alley entrance, livestock flow is improved by eliminating corners that are found in other sweep systems.
The Sheeted Adjustable Alley Gates are designed to work with our Adjustable Alley Frames and serve as heavy duty roll gates for blocking cattle.
The Rough Stock Open Bow Gate includes the sweeping gate, an alley frame that serves as the initial opening into the crowding alley, and a spring loaded Double Piston Lever Latch.
Our Rough Stock Open Curve Panels are specially designed to create our sweep tub and each includes three vertical blocking points that allow the sweep gate to latch. These stops help prevent cattle from pushing the sweep gate back when being crowded.
The 8’ Rough Stock Open Sweep Bow Gate serves as a sorting gate, giving you the option to sort or load out cattle straight from the sweep, without crowding them down the alley.
Radius Bars work at ground level to maintain the constant and correct radius for the sweep and the Radius Bow provides support from overhead.
The 38’ long alley can easily be lengthened by purchasing additional panels and alley frames.
This system is constructed from Priefert Rough Stock Panels, our heaviest, most durable panel. As the panel of choice for the NFR and the PBR, these panels are designed to handle the rankest cattle.
Priefert’s unique Adjustable Alley Frames allow operators to quickly and easily adjust the width of the working alley to better fit the size of cattle being work. The alley can be set to 18”, 21”, 25”, or 28” wide.
The two Rough Stock Open Preg Panels situated at the end of the working alley make it easy for you to palpate or AI cattle. They can also double as sorting gates.
Situated immediately before the Preg Panels, there is an 8’ section of alley specifically designed to work with the platform scale of your choice (scale sold separately). With blocking gates before and after the scale section, you can be sure cattle are contained on the platform for accurate weighing.
The Adjustable Alley Frame with Chute Attachment allows for quick and easy attachment of your adjustable alley to a Priefert Squeeze Chute (sold separately). The SAAFC will attach directly to our Model S01, S0191, or S04 chute, while an additional adaptor is required for our Model SC13 Squeeze Chute.
Architectural Grade Powder Coat Finish with UV inhibitors add years of life to your investment by helping the product resist rust, scratches and fading.
Specifications
Alley Length: 30’
Alley Frame Inside Height: 80”
Bow Gate Frame Height: 7’ (approximate height)
Panel Height: 6’
Architectural Grade Powder Coat Finish
Color: Grey
Inside Alley Width: Adjustable to 18”, 21”, 25”, or 28”
RSOS-1 includes: 1- Open Bow Gate, 3- Open Curve Panels, 3- Radius Bars, 1- Radius Bow, 4- 10’ Rough Stock Panels, 2- 8’ Rough Stock Panels, 2- Rough Stock Open Preg Panels, 3- Sheeted Adjustable Alley Gates, 1- Sheeted Adjustable Alley Frame, 1- Adjustable Alley Frame with Chute Attachment, 2- Connector Posts, 1- 8’ Rough Stop Open Sweep Bow Gate
