180 Degree Open Sweep w/ 24' Alley and Sort Alley
180 Degree Open Sweep w/ 24' Alley and Sort Alley
This 180-degree sweep tub includes a 24’ main alley along with a side alley which can be used for sorting or as a lead up to a calf table.
180 Degree Open Sweep w/ 24' Alley & Sort Alley
This rugged, completely reversible crowding system can be used as part of a permanent or portable working corral and can be easily expanded upon to accommodate larger herd sizes. It provides a durable and affordable crowding system that helps reduce the labor needed for working cattle. This system is built with Premier Panels, our number one selling cattle panel, constructed from our patented Quadraform™ tubing to allow for maximum strength and flexibility. Each panel features single piece vertical stays fitted through drilled rails to further increase the structural integrity. Sturdy pin connectors are used to assemble the tub and alley components. The Alley Frames maintain the strength and support of the 28” wide alley and the “no-back” Alley Stop can be easily adjusted to prevent cattle from backing out of the alley. The side alley can be used for sorting or as a lead up to a calf table. The attractive and durable Architectural Grade Powder Coat Finish with UV inhibitors will add years of life to your investment by helping this system resist rust, scratches and fading.
Features
This Premier Open Sweep is great for permanent corrals and versatile enough for portable applications.
This 180 degree sweep is easily reversible so that cattle can be loaded from either side of the working alley, and can be expanded into a complete corral system with the purchase of additional pieces.
“Tough Enough for Cattle, Safe Enough for Horses,” this sweep is constructed from our number one selling cattle panel, the Premier Panel.
Premier Panels are constructed from our patented Quadraform™ tubing to allow for maximum strength and flexibility. These panels feature single piece drilled stays to provide extra stability.
Sturdy pin connectors provide secure connection points that allow for quick and easy assembly of the sweep tub.
The 10’ wide sweep gate pushes cattle into the working alley. This gate features a 7’ tall bow frame for added stability and a Double Piston Lever Latch.
Powder-coated Alley Frames help maintain the strength and support of the 28” wide fixed alley.
This Premier Kit includes a side alley that can be used for a sorting alley or as a lead up to a calf table.
With no tools required, the effective height of the “no-back” Alley Stop can be quickly set to prevent the backing of bulls, cows, and calves.
Architectural Grade Powder Coat Finish with UV inhibitors add years of life to your investment by helping the product resist rust, scratches and fading.
Specs
Alley Length: 24’
Alley Frame Inside Height: 74.75”
Panel Height: 64”
Inside Alley Width: 28”
Bow Gate Frame Height: 7’ (approximate height)
Premier Sweep Gate constructed from 2” OD Round 16 gauge tubing with 1.050” OD single piece vertical stay, bow frame constructed from 2.375” OD 12 gauge tubing.
Sweep panels constructed from 16 gauge Quadraform™ tubing

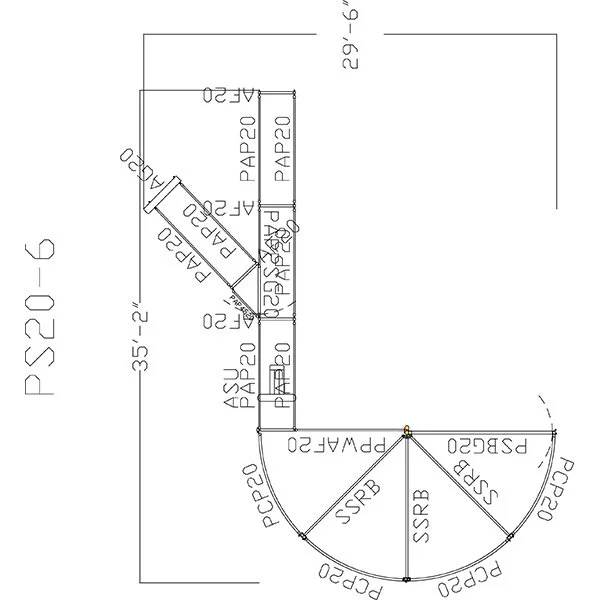

PS20-6 includes: 1- Premier Sweep Bow Gate (PSBG20), 1- Premier Panel with Alley Frame (PPWAF20), 4 - Premier Curve Panels (PCP20), 3- Sheeted Sweep Radius Bars (SSRB), 7- Premier Alley Panels (PAP20), 4- Alley Frames (AF20), 1- Premier Alley Preg Panel Sort Gate (PAPPSG20), 1- Premier Alley Panel for 45 Degree Sort Alley (PAP4520), 1- Alley Gate (AG20), and 1- Universal Alley Stop (ASU)
Architectural Grade Powder Coat Finish
Color: Grey
