Fully Automatic Roping Chute - RC22AI
Fully Automatic Roping Chute - RC22AI
This remote-controlled chute is ideal for the practice arena because it virtually eliminates the need for extra chute help. The push of a button operates the chute.

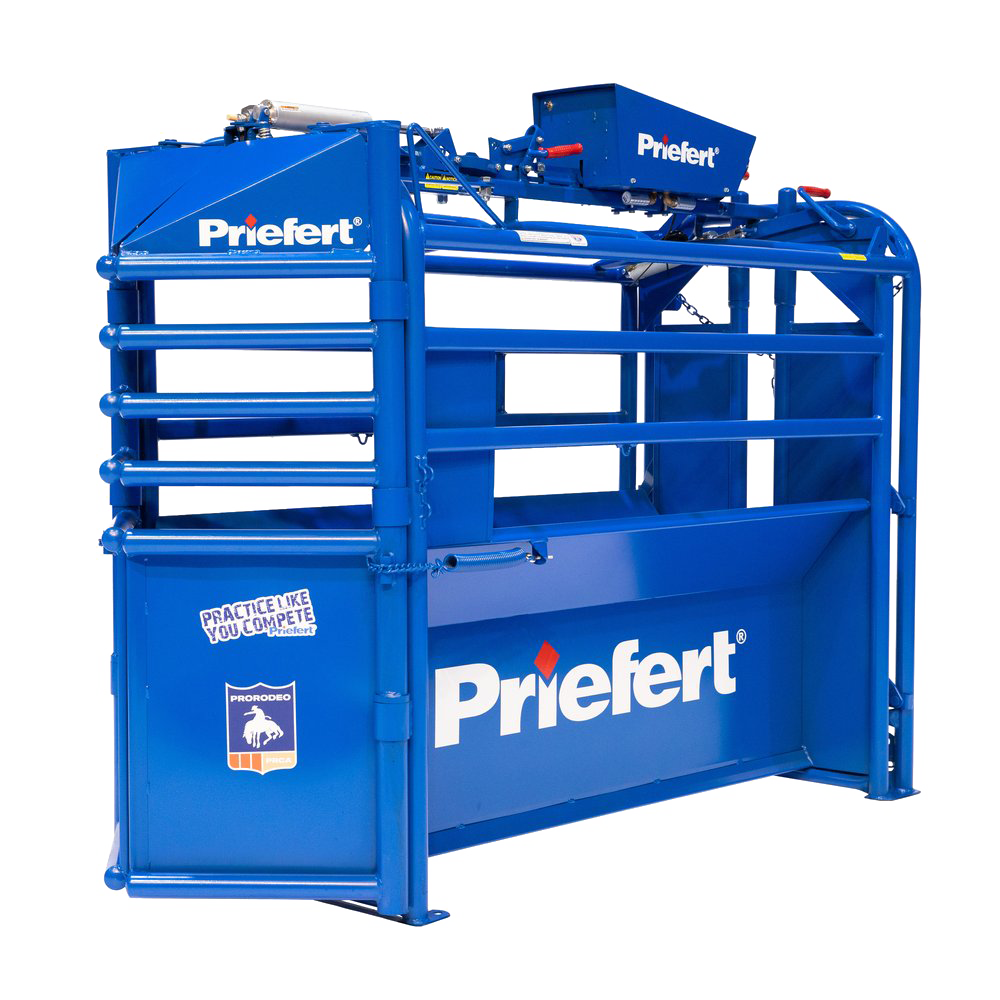

RC22AI Fully Automatic Roping Chute
Endorsements by numerous World Champion ropers have helped make Priefert’s Fully Automatic Roping Chute one of the most popular pieces of equipment in arenas across the country. It’s not just the pros that use Priefert. Everyone knows that it is important to “Practice like you Compete,” with a Priefert chute. Priefert’s Fully Automatic Roping Chute takes efficiency to a whole new level by incorporating a Laser-Eye and remote control action.
This remote-controlled chute is ideal for the practice arena because it virtually eliminates the need for extra chute help. The roper pushes a single button on the remote to release the steer/calf. When the chute is empty, the laser eye activates the closing of the front gate. After this gate is closed, the split tailgate opens automatically to allow the next steer/calf to enter the chute. Once the animal has entered, the laser eye detects that the chute is loaded and it closes the tailgate. This lets the roper to return to the box with a steer/calf loaded and ready for the next run. This Fully Automatic Chute allows the roper to spend more time roping, and less time reloading the chute. As an added feature, a dial on the chute’s control box gives ropers the ability to delay the opening of the front release gate, allowing the roper time to get ready for the run after pushing the release button. The timing of this delay can be set from approximately 3 to 30 seconds. Priefert’s Fully Automatic Chute can also be set to function in semi-automatic mode, with each function of the chute corresponding to a different button on the remote. The remote control unit is compact and easily fits in a pocket or in the belt clip-holder.
The Priefert name has become synonymous with today’s roping industry. Priefert Roping Chutes and accessories are the number one choice of professional ropers and top organizations. The innovation behind every Priefert Roping Chute combined with their legendary durability, has changed the look and feel of the growing roping industry. Our chutes are the Official Chute of the PRCA, the National Finals Rodeo, the USTRC, the Priefert World Series of Team Roping, the NTRL, the George Strait Team Roping Classic, the BFI, and many more major roping organizations and events, making Priefert the chute of choice when big money is on the line!
Quiet Front Release Gates
The unique braking system used to control the front release gate is set to virtually eliminate noise.
Laser Eye
The built in Laser Eye detects the presence or absence of an animal in the chute.
Fully Automatic Mode
In this mode, one push of a button activates the laser eye and operates every function of the chute.
Semi-Automatic Mode
In this mode, each function of the chute is controlled independently by a different button on the remote.
Delay Setting
A dial on the chute’s control box can be set to delay the opening of the chute from 3-30 seconds after the remote button is pushed.
Contoured Sides
The contoured sides narrow at the bottom to discourage animals from turning around in the chute.
Split Tailgate
The spilt tailgate can be opened from either side of the chute and operates without ropes, pulleys or knee-knocking levers.
Remote Control
Our preprogrammed Remote Control unit is compact and easily fits in a pocket or in the leather belt clip case.
Replaces Item Number: RC98AIBE
Features
Priefert Roping Chutes and accessories are the number one choice of professional ropers and top organizations.
Priefert’s Fully Automatic Roping Chute takes efficiency to a whole new level and is ideal for the practice arena because it virtually eliminates the need for extra chute help.
The front release braking system also “deadens” the gate as it pops to the full open position, with no backlash to potentially cause the steer/calf to hesitate upon exit.
The built in Laser Eye detects the presence or absence of an animal in the chute.
In Fully Automatic Mode, the roper pushes a single button on the remote to release the steer/calf. When the chute is empty, the Laser Eye activates the closing of the front gate. After this gate is closed, the split tailgate opens automatically to allow the next steer/calf to enter the chute. Once the animal has entered, the Laser Eye detects that the chute is loaded and it closes the tailgate. This lets the roper to return to the box with a steer/calf loaded and ready for the next run.
A dial on the chute’s control box can be set to delay the opening of the chute from 3-30 seconds after the remote button is pushed. This allows the roper to prepare for the run after pushing the release button.
The RC22AI features contoured sides that narrow at the bottom to discourage animals from turning around in the chute.
The bottom of the chute is sheeted to reduce the possibility of leg injuries.
An Architectural Grade Powder Coat Finish with UV inhibitors adds years of life to your investment by helping the product resist rust, scratches, and fading.
Most ropers prefer to set the compressor in a place away from the pen or even put the compressor in a nearby building or insulated dog house to minimize sound.
Priefert Roping Chutes are the Official Chute of the PRCA, the National Finals Rodeo, the USTRC, the Priefert World Series of Team Roping, the NTRL, the George Strait Team Roping Classic, the BFI, and many more major roping organizations and events.
All Priefert roping chutes are specifically engineered to be as quiet as possible. The unique braking system used to control the front release gate is set to virtually eliminate noise prevalent with competitor chutes.
A quiet opening chute is important so that horses can be properly trained to queue off the rider’s command and not by the sound of banging head gates.
A button on the back of the control box allows the user to choose between Fully Automatic and Semi-Automatic Mode. When the “Automatic” light is on, the chute is in Fully Automatic Mode, and when it is off, the chute is in Semi-Automatic Mode.
In Semi-Automatic Mode, the roper or chute help pushes a single button to release the steer, a second button to close the headgate, and individual buttons for both opening and closing the tailgate.
Our preprogrammed Remote Control unit is compact and easily fits in a pocket or in the leather belt clip case (sold separately).
With a 14” inside width at the bottom, this chute can be used for both steers and calves.
In manual mode, the spilt tailgate can be opened from either side of the chute and operates without ropes, pulleys or knee-knocking levers.
A 110 volt electrical outlet and a compressor (not included) capable of producing 90-100 lbs of air pressure and 3.2 CFM are required to activate the chute’s automatic headgate and tailgate. Both electrical and air lines may be buried underground and run to the chute location.
In the event of a power loss, the RC22AI can also be operated manually.
Specifications
Overall Height: 68”
Inside Width at Top: 30”
Overall Length: 86”
Architectural Grade Powder Coat Finish
A 110 volt electrical outlet and a compressor (not included) capable of producing 90-100 lbs of air pressure and 3.2 CFM are required to activate the chute’s automatic headgate and tailgate
Overall Width: 36”
Inside Width at Bottom: 14”
Weight: 491 lbs (All weights approximate)
Color: Priefert Blue
Draws 5 amps of electricity at peak
