Features

• This corral system is great for permanent corrals and versatile enough for portable applications.

• Expandable and reversible, this layout works well for herds numbering up to 100 head.

• “Tough Enough for Cattle, Safe Enough for Horses,” this sweep is constructed from our number one selling cattle panel, the Premier Panel.

• Premier Panels are constructed from our patented Quadraform™ tubing to allow for maximum strength and flexibility. These panels feature single piece drilled stays to provide extra strength and stability, J-legs to increase the ease of portability and prevent sinking into wet or boggy ground and chain connectors to offer increased versatility for connecting panels over uneven ground and allow for easy connection to existing structures.

• The sweep tub and alley components feature pin connections for quick and easy setup.

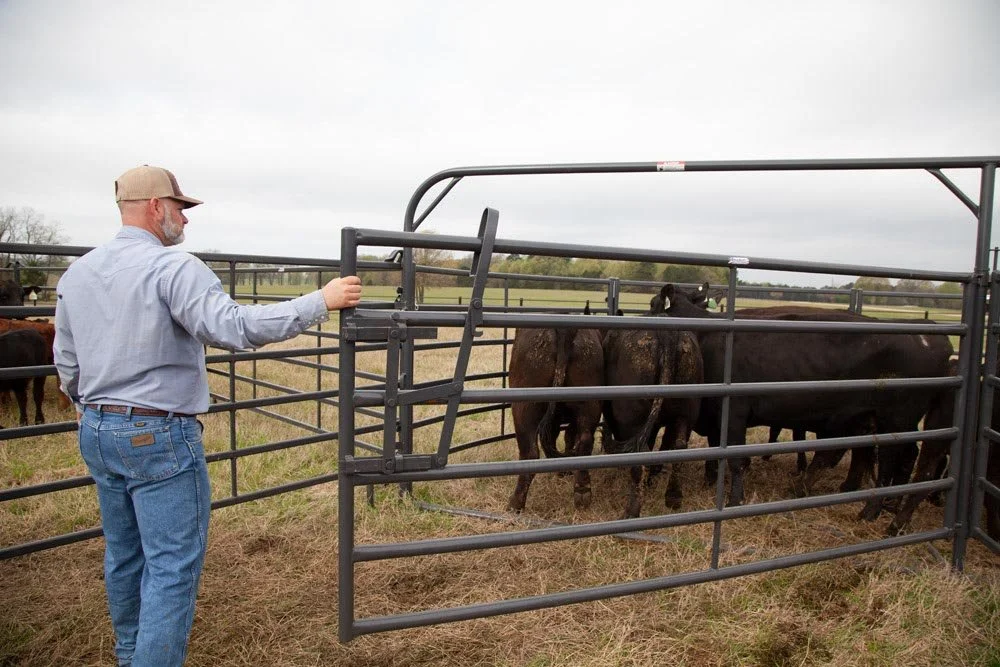

• A 10’ wide Premier Free Swing Bow Gate works as the sweep gate, pushing cattle into the working alley. This gate features a 7’ tall bow frame for added stability.

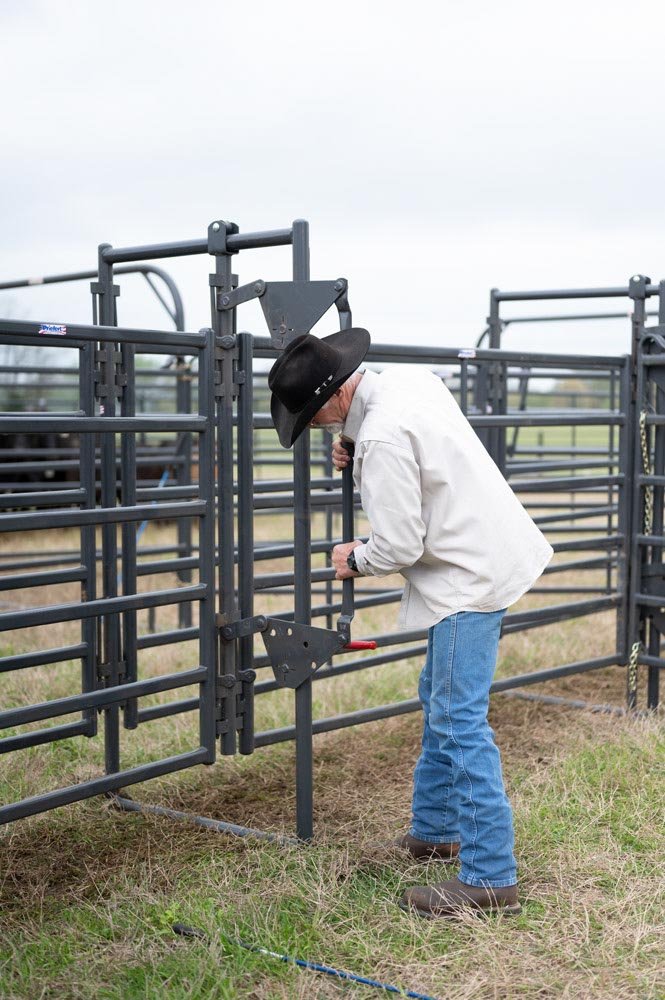

• With no tools required, the effective height of the “no-back” Alley Stop can be quickly set to prevent the backing of bulls, cows, and calves.

• Situated every 8’ along the length of the alley, Alley Frames help maintain the strength and support of the alley.

• The working alley is available as a fixed alley that maintains a constant width of 28” or as an adjustable alley that can be set to widths of 18”, 21”, 25”, or 28” wide.

• Architectural Grade Powder Coat Finish with UV inhibitors adds years of life to your investment by helping the panels resist rust, scratches and fading.

• The S04 Squeeze Chute is designed to be user friendly, all levers and handles are located so that a single individual can operate the headgate, tailgate, squeeze, and side exit from one spot with minimal effort.

• Headgate locks and Side Squeeze locks are GUARANTEED FOR LIFE! This infinite locking system allows a perfect fit for every size animal.

• The Model 91 Headgate operates in manual or automatic catch mode. To set the automatic catch, move the auto-catch lever to activate the spring, and then use the self-catching lever on the front of the headgate to select one of 4 opening widths. The sides of the headgate are contoured to fit securely around the neck of the animal.

• This chute design allows maximum neck access, offering greater convenience for preferred injection sites. There are no “head-banging” handles in the way of the operator! All handles are parallel along the side of the chute or store over the chute and out of the way of the operator.

• The Model S04 Squeeze Chute features 5 contoured upper access panels and a removable bottom access panel on each side of the chute to provide the operator with full access to both sides of the animal.

• The S04 also features a side exit gate to be used for sorting or as an emergency exit.

• The “split tailgate” on the chute features dual controls to allow operation of the tail gate from the front or rear of the chute. The simple pull of a pin disengages half of the tailgate to create a “calf-sized” entry into the chute. Put the pin back in place to resume split tailgate action.

Specifications

• Alley Length: 32’

• Alley Frame Inside Height: 74.25”

• Panel Height: 64”

• Fixed Alley Inside Width: 28”

• Adjustable Alley Inside Width Settings: 18”, 21”, 25”, or 28”

• Bow Gate Frame Height: 7’ (approximate height)

• Handles approximately 100 head of cattle

• Squeeze Chute Infinite Locks are guaranteed for life – Lubricate infinite locks and all moving parts of the chute before each use with a light oil (i.e. WD-40). DO NOT use heavy oil.

• S04 dip painted Priefert Blue

• All other components feature a Grey Architectural Grade Powder Coat Finish
