Priefert’s Cattle Guards are designed to be placed in fence lines in place of a gate to allow for easy drive-thru access while still safely containing cattle.
Priefert Cattle Guards
Priefert’s Cattle Guards are designed to be placed in fence lines in place of a gate to allow for easy drive thru access while still safely containing cattle. These “set-in-place” cattle guards require no concrete footing for installation and are cambered to better match the crown of most roads. With a variety of size options in our Medium and Heavy Duty models, Priefert Cattle Guards are able to handle multiple load ranges and diverse applications.
| Item | Length | Width | Height | Camber Rise | Weight |
|---|---|---|---|---|---|
| Heavy Duty | |||||
| CAT9312 | 8’ - 3/16” | 12’ - 1 1/8” | 21 1/4” | 1 1/4” | 2,455 lb |
| CAT9314 | 8’ - 3/16” | 14’ - 1 1/8” | 22 3/8” | 1 7/16” | 2,836 lb |
| CAT9316 | 8’ - 3/16” | 16’ - 1 1/8” | 22 5/8” | 1 11/16” | 3,217 lb |
| CAT9318 | 8’ - 3/16” | 18’ - 1 11/16” | 23 7/16” | 2 1/2” | 3,647 lb |
| CAT9320 | 8’ - 3/16” | 20’ - 1 11/16” | 23 7/16” | 2 1/2” | 4,134 lb |
| CAT9322 | 8’ - 3/16” | 22’ - 1 11/16” | 24 5/16” | 3 5/16” | 4,407 lb |
| CAT9324 | 8’ - 3/16” | 24’ - 1 11/16” | 24 5/16” | 3 5/16” | 4,895 lb |

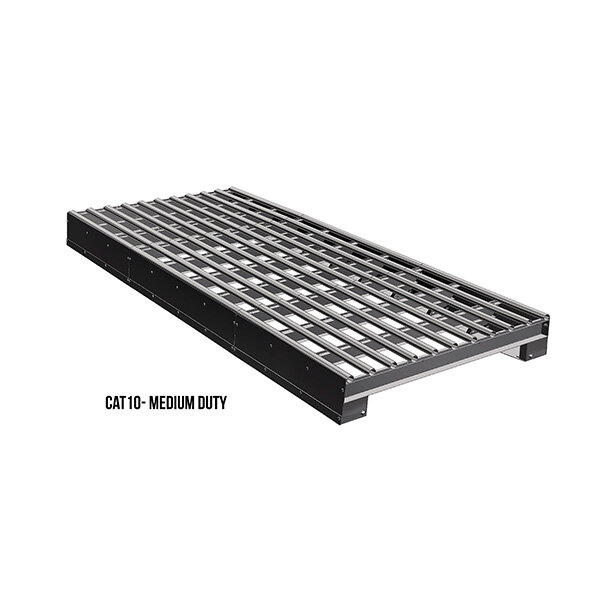

| Medium Duty | |||||
| CAT1012 | 8’ – 1/16” | 12’ - 1 1/16” | 21 1/16” | 1 1/4” | 1,838 lb |
| CAT1014 | 8’ – 1/16” | 14’ - 1 1/16” | 21 1/4” | 1 7/16” | 2,123 lb |
| CAT1016 | 8’ – 1/16” | 16’ - 1 1/16” | 21 1/2” | 1 11/16” | 2,408 lb |
| CAT1018 | 8’ – 1/16” | 18’ - 1 1/16” | 22 5/16” | 2 1/2” | 2,731 lb |
| CAT1020 | 8’ – 1/16” | 20’ - 1 1/16” | 22 5/16” | 2 1/2” | 3,016 lb |
| CAT1022 | 8’ – 1/16” | 22’ - 1 1/16” | 23 1/8” | 3 5/16” | 3,301 lb |
| CAT1024 | 8’ – 1/16” | 24’ - 1 1/16” | 23 1/8” | 3 5/16” | 3,585 lb |
Features
Priefert Cattle Guards adhere to AASHTO guidelines.
This "set-in-place" Cattle Guard is ideal for agriculture operations in need of containing livestock without impeding road travel.
No concrete footing is required for installation.
Metal skirting along the sides of the guard help prevent fill dirt from falling into the open space below the guard. Open ends allow for water drainage.
Priefert cattle guards are built with a camber to better match the crown of most roads. *Cambered installations need matching cambered ground preparation
6-1/8" Rail Spacing
Specs
CAT10 Maximum single axle weight: 16,000# (4’ Spacing)
CAT10 Maximum tandem axle weight: 17,000# per axle (4’ Spacing)
CAT93 Maximum single axle weight: 32,000# (4’ Spacing)
CAT93 Maximum tandem axle weight: 25,000# per axle (4’ Spacing)
Architectural Grade Powder Coat Finish
Color: Grey
