Working Alley w/Model 91 Headgate

Working Alley w/Model 91 Headgate

Priefert

$4,127.00 USD
$0.00 USD $4,127.00 USD
Sale Call to Order

P-WA-120GY
Not eligible for free shipping

Freight Charge
This item may require freight charges due to the weight or size. Our friendly staff will contact you to set up your delivery. If you have any questions please Contact Us or call 512-264-2024.

Easily adaptable for connection to any crowding system, the WA-1 is ideal for applications where a short alley with a headcatch will be needed.

Working Alley w/Model 91 Headgate

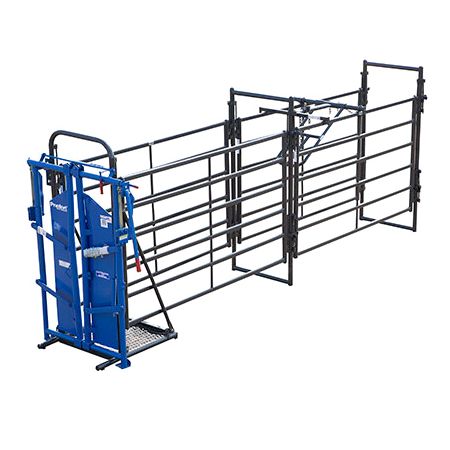

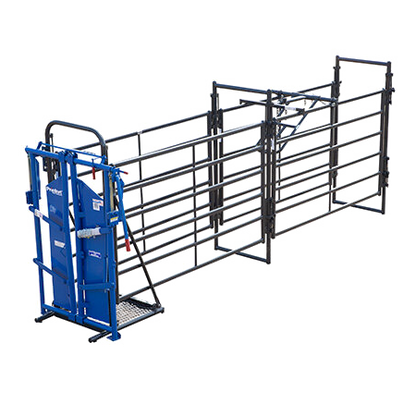

Easily adaptable for connection to any crowding system, the WA-1 is the perfect option for applications that require a short working alley with a headgate. This working alley features Priefert’s Model 91 Headgate, which is designed to work in manual or automatic mode, and Priefert Premier Alley Panels. The WA-1 also includes our Headgate Stand to securely mount the HG91 to the working alley and a “no-back” Alley Stop to prevent cattle from backing out of the alley. This system is ideal for small operations, but can be easily expanded upon to accommodate larger herd sizes.

View full details

Features

    • The WA-1 is easily adaptable to work with any permanent or portable corral system and is perfect for applications that require a short alley with a headcatch at the end.
    • Model 91 Headgate operates in manual or automatic catch mode. Simply engage the automatic catch feature by moving the auto-catch lever forward to activate the spring. When in automatic mode, set the self-catch lever on the front of the headgate to select one of 4 opening widths.
    • The yokes (or sides) of the headgate are contoured to fit securely around the neck of the animal, and the patented Infinite Locking System (guaranteed for life) allows for a perfect fit for every size animal with no adjustments necessary.
    • HG91 is reversible to allow right or left-handed operation.
    • Our Headgate Stand allows to you easily mount the HG91 to the end of the working alley and is designed so that it pins directly to the Premier Alley Panels.
    • Four Premier Alley Panels create the 16’ long alley. “Tough Enough for Cattle, Safe Enough for Horses,” these are part of our number one selling cattle panel line and are constructed from our patented Quadraform™ tubing to allow for maximum strength and flexibility.
    • Two powder-coated Alley Frames help maintain the strength and support of the 28” wide alley.
    • With no tools required, the effective height of the “no-back” Alley Stop can be quickly set to prevent the backing of bulls, cows, and calves.
    • Headgate Stand, Premier Alley Panels, Alley Frames, and Alley Stop feature an Architectural Grade Powder Coat Finish with UV inhibitors to add years of life to your investment by helping these products resist rust, scratches and fading.
    • For maximum stability, we recommend driving T-Posts on the outside of the alley at the rear corners of the headgate stand and securing the stand to the T-Posts.

Specifications

    • Alley Length: 16’
    • Alley Frame Inside Height: 74.5”
    • Panel Height: 64” when attached to Alley Frames
    • Inside Alley Width: 28”

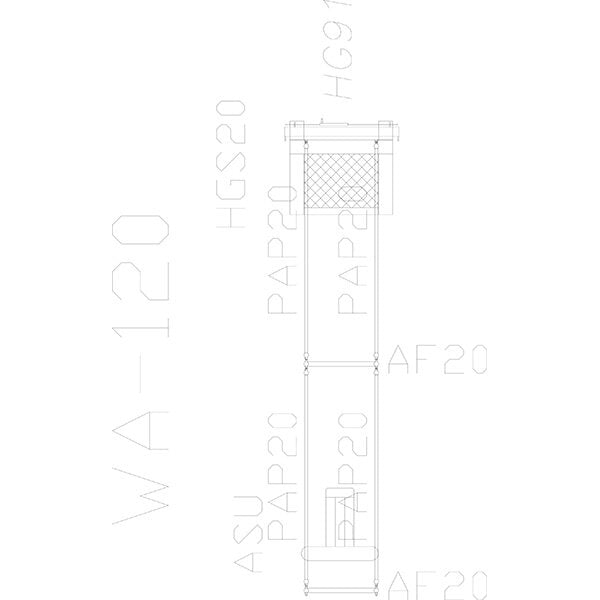

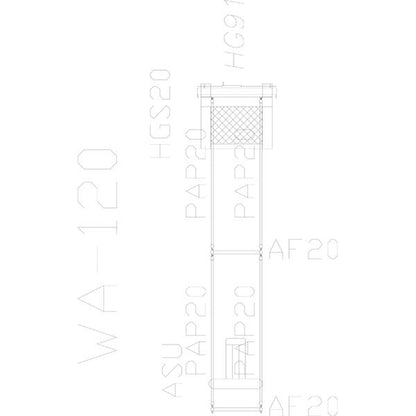

    • WA-120 includes: 1- Model 91 Manual/Automatic Headgate (HG91), 1- Headgate Stand (HGS20), 4- Premier Alley Panels (PAP20), 2- Alley Frames (AF20), and 1- “no-back” Alley Stop (ASU)
    • Priefert recommends driving T-Posts on the outside of the alley at the rear corners of the headgate stand, securing the stand to the T-Posts
    • Premier Alley Panels constructed from 1.66” OD Quadraform™ 16 gauge tubing
    • Alley Frames constructed from 2” OD 11 gauge tubing
    • HG91 dip painted Priefert Blue
    • Headgate Stand, Premier Alley Panels, Alley Frames, and Alley Stop feature Grey Architectural Grade Powder Coat Finish
