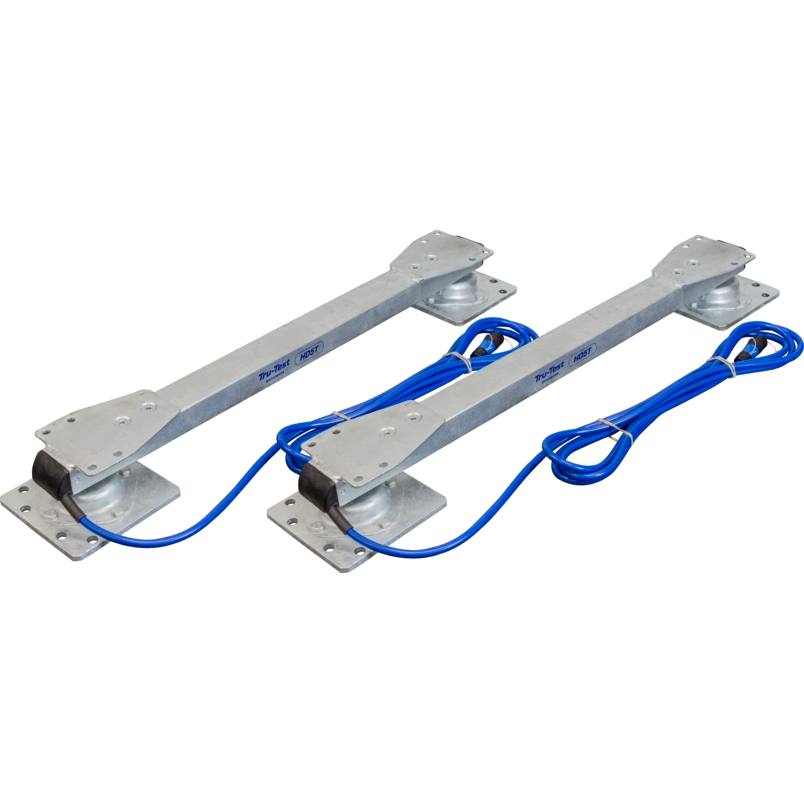

Tru-Test Scales HD5T Load Bars

Tru-Test Scales HD5T Load Bars

Tru-Test

$1,889.00 USD
$2,300.00 USD $1,889.00 USD
Sale Call to Order

ZL-HD5T
Free Shipping

The HD5T Load Bars are designed to be tough, reliable and easy to install under any manual or hydraulic squeeze chute.

Tru-Test Scales HD5T Load Bars

Tru-Test load bars are recognized for their rugged durability and performance in harsh environments. The HD5T Load Bars are designed to be tough, reliable and easy to install under any manual or hydraulic squeeze chute. The simplicity of set up means you can easily install with no assistance needed.

With a capacity suitable for the heaviest of cattle squeeze chutes, you will have outstanding performance with the best weighing set up for your animals.

Performance & Design

Tech Spec/What's Included

Product Highlights

View full details

Downloads:

Features

    • Extremely easy to install. Simply bolt it to the squeeze chute and then bolt to the level concrete surface.
    • More capacity. The 11,000 lb capacity heavy duty load bar is suitable to mount under the heaviest of cattle squeeze chutes.
    • Sealed load cell. Protects the load cell against moisture damage allowing the load bars to remain outside under the chute.
    • Corrosion resistant. Galvanized steel construction means the HD5T Load Bars can endure the harshest agricultural environment.
    • Robust. Heavy duty TPR/PVC cables are a standard feature, which minimize the likelihood of cable damage.

Specifications

    • Total Capacity: 2 x HD5T load bars = 11,000 lb (5,000 kg)
    • Sensitivity: 1.25 mV/V
    • Total nominal length: 43"
    • Weight (pair): 80 lbs
    • Bar section width: 3"
    • Overall height: 4.3"
    • Overall height: 16'
    • Base resolution with Tru-Test scales: 2 x HD5T load bars = 1 lb (0.5 kg)
    • Accuracy: +/- 1 % or 2 resolutions, whichever is greater
    • *An optional load bar bracket may be required, depending on the chute model. To view the dimension drawing, visit tru-test.com/HD5T.
