Sheeted Preg Panel w/Sorting Gate - SPPSG

Sheeted Preg Panel w/Sorting Gate - SPPSG

Priefert

$1,374.00 USD
$1,527.00 USD $1,374.00 USD
Sale Call to Order

P-SPPSG

Freight Charge
This item may require freight charges due to the weight or size. Our friendly staff will contact you to set up your delivery. If you have any questions please Contact Us or call 512-264-2024.

One great panel with two functions - provides a safe blocking gate for AI and palpation, or provides an additional sorting gate.

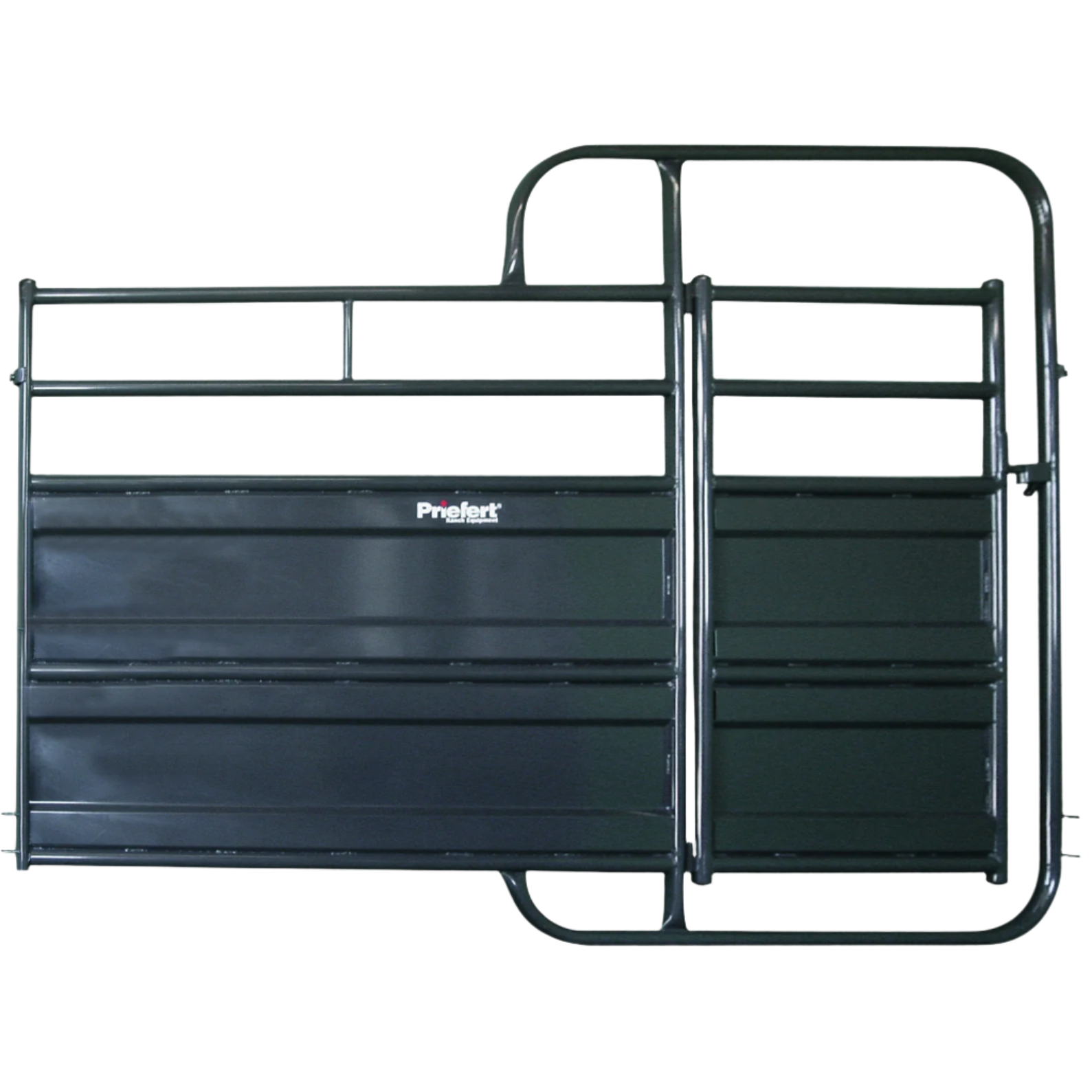

SPPSG Sheeted Preg Panel w/Sorting Gate

Priefert’s Sheeted Preg Panel with Sorting Gate is commonly used as a component in the alley of a Solid Sweeps. The SPPSG can be situated at the end of the working alley to provide easy and secure access to palpate or AI cattle. Simply open the gate and lock it into place to block the lead up alley and gain access to the rear of the cow. The SPPSG can also be used toward the middle of a working alley to serve as a sorting gate or as an entry gate into a side/sorting alley. Sturdy Rough Stock Pin connectors allow for quick and secure attachment to other components. The Architectural Grade Powder Coat Finish helps the product to resist rust, scratches, and fading to add years of life to your investment.

View full details

Features

    • An SPPSG situated at the end of a working alley makes it easy for to gain secure access to palpate or AI cattle. Simply open the gate and lock it into place to block the lead up alley and gain access to the rear of the cow.
    • The SPPSG can be used as an access gate or as a sorting gate.
    • Architectural Grade Powder Coat Finish with UV inhibitors add years of life to your investment by helping the product resist rust, scratches and fading.
    • Solid bottom of the panel is constructed from 14 gauge sheeted steel and begins 11” above the ground and extends to 50” above the ground.
    • All the components of our Solid Sweeps are constructed with durability in mind to ensure that they can withstand even the rankest cattle.
    • Sturdy Rough Stock pin connectors allow for quick and secure connections to additional components.

Specifications

    • Overall Length: 116”
    • Overall Height: 84”
    • Gate Width: 34”
    • Weight: 256 lbs (All weights approximate)
    • Solid bottom of the panel is constructed from 14 gauge sheeted steel
    • Architectural Grade Powder Coat Finish
    • Color: Grey
    • When properly installed, the sheeting begins 11” above ground and continues to 50” above the ground
    • The frame is constructed from 2” OD 14 gauge tubing
    • Top of the panel features two rails constructed from 2” OD 14 gauge tubing with 8” spacing between the rails
