Premier Bow Gates 7' Tall
Premier Bow Gates 7' Tall
Priefert
SKU:P-PFS10GY
Couldn't load pickup availability
Starting at $17.25/mo with approved credit.
Financing
Freight Charge
This item may require freight charges due to the weight or size. Our friendly staff will contact you to set up your delivery. If you have any questions please Contact Us or call 512-264-2024.
Available in 4’, 10’, and 12’ widths with 7” clearance, these bow gates are the perfect walk thru gate into alleys and arenas.
PBG04, PFS10, PFS12 7' Tall Premier Bow Gates
“Tough Enough for Cattle, Safe Enough for Horses,” these uniquely designed bow gates are intended for use with Priefert’s Premier Panels. With a Bow Frame height of 7’, these gates are ideal for “walk thru” applications, like providing access to pastures, corrals, arenas, and more. These gates are constructed from our patented Quadraform™ tubing to allow for maximum strength and flexibility. Single piece vertical stays fitted through drilled rails further increase the structural integrity, and the “Fishhook” top corners increase the durability and safety of the gates. These bow gates utilize chain connections, which offer versatility and ensure tight connections. The Architectural Grade Powder Coat Finish helps the product to resist rust, scratches, and fading to add years of life to your investment.





Item Number | Gate Width | Weight (lbs) | # of Stays | # of Stays |
---|---|---|---|---|
PBG04 | 4' | 61 | 0 | Sliding Latch |
PFS10 | 10' | 199 | 1 | Double Piston Lever Latch |
PFS12 | 12' | 199 | 1 | Double Piston Lever Latch |
Features
-
- Premier Panels & Gates are ideal for use in a number of applications around the farm or ranch, from cattle systems to round pens, from arenas to corrals, these panels and gates are a solid choice anywhere confinement is needed.
- “Tough Enough for Cattle, Safe Enough for Horses,” these gates are part of our number one selling line of cattle panels and accessories.
- Popular among horse and cattle owners alike, these gates are designed for use in crowding applications.
- With a Bow Frame height of 7’, these gates are ideal for “walk thru” applications.
- Gates are constructed from our patented Quadraform™ tubing to allow for maximum strength and flexibility.
-
- Single piece vertical stays that are fitted through drilled rails provide additional strength and structural integrity.
- Chain connectors allow for quick, tight connections between panels and gates. They also offer increased versatility for connecting to panels over uneven ground and allow for easy connection to existing structures.
- “Fishhook” design top corners minimize the opportunity for injury.

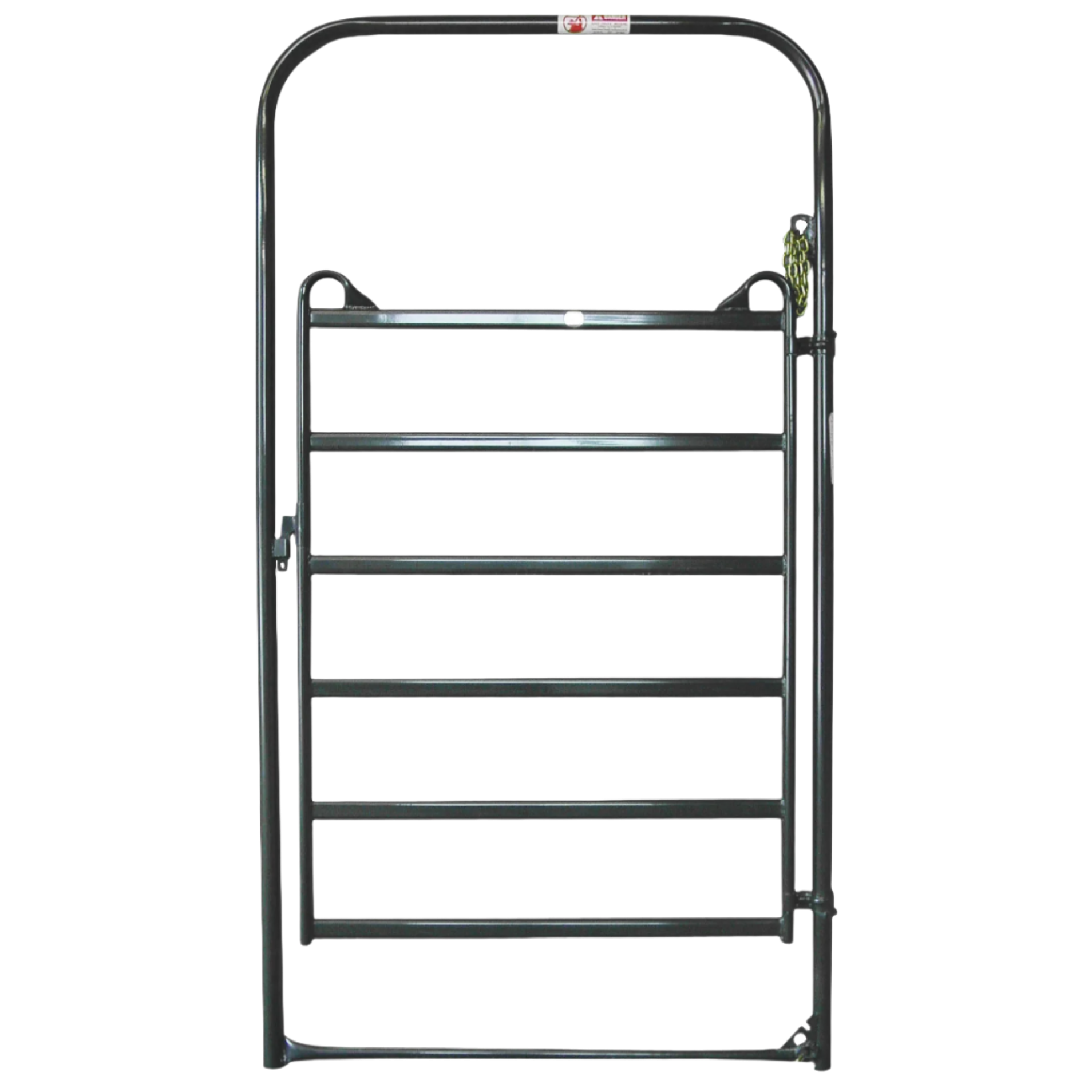

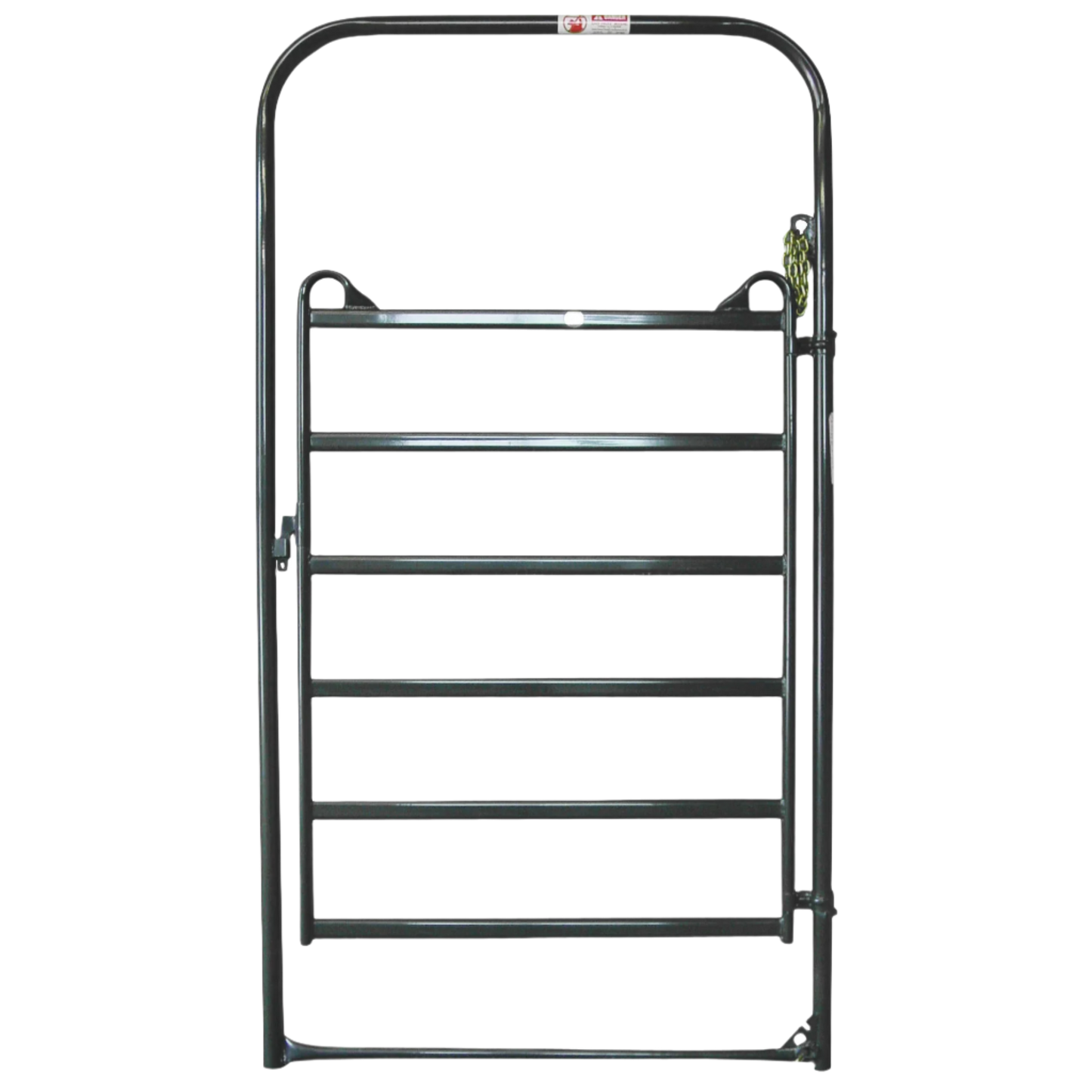

- The 4’ bow gate features a simple vertical slide latch, while the 8’, 10’, and 12’ gates each feature a heavy duty Double Piston Lever Latch.
- Architectural Grade Powder Coat Finish with UV inhibitors adds years of life to your investment by helping the product resist rust, scratches and fading.
Specifications
-
- Bow Frame Height: 7’
- Number of Gate Rails: 6
- 4’ Bow Frame constructed from 1.66” OD 11 gauge tubing
- 10’, & 12’ Bow Frames constructed from 2.375” OD 11 gauge tubing
- Gates constructed from 1.66” OD 16 gauge Quadraform™ tubing
-
- Vertical stays constructed from 1.050” OD steel tubing, fitted through drilled rails
- Architectural Grade Powder Coat Finish
- Color: Grey
- All weights are approximate
