Maxtensor MXL2-DT Wire Grip

Maxtensor MXL2-DT Wire Grip

Stay-Tuff

$53.19 USD
$53.19 USD
Sale Call to Order

ST-MT-132

QTY: 20

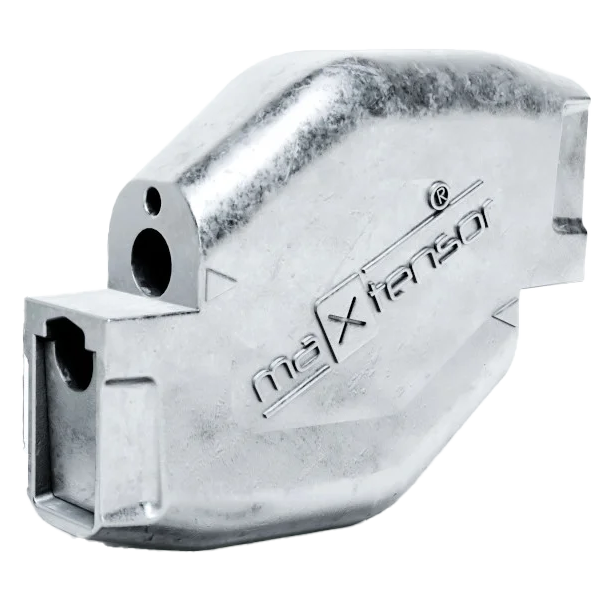

The MAXTENSOR® MXL2-DT connector and tensioner is specially designed to join and tension wires in vineyards, orchard trellises and livestock fences.

MAXTENSOR® products can be used both in new installations and for repairs of damaged sections.

  • Includes hole for releasing the wire
  • The MAXTENSOR® MXL2-DT connector and tensioner can be adjusted (1) and the wire re-tensioned as many times as necessary.

(1) Provided the wire is free of tension

  • MAXTENSOR® MX2-DT is adjustable and reusable.
  • Suitable for use with barbed wire, electric fences and zinc-aluminum coated wires.
  • Made with high-quality materials to ensure long-lasting durability.
  • All components are metallic.
  • High mechanical resistance and corrosion resistance.
  • Robust, reliable and durable.

MAXIMUM RELIABILITY

The internal mechanism of the MAXTENSOR® MXL2-DT connector and tensioner allows the wire to advance freely in the direction of the arrow and locks immediately when pulled in the opposite direction.

It is designed to allow the wire to enter easily, smoothly, and quickly to save installation time; with a strong locking mechanism; and with an ergonomic geometry for easy handling.

PATENTED SYSTEM

Technology tested and validated worldwide and in all types of weather conditions.

With millions and millions of units sold worldwide, the patented MAXTENSOR® system satisfies even the most demanding users around the globe.

Manufactured in the European Union under strict specifications and high quality standards.

Uses

  • MAXTENSOR® products can be used for a wide range of wires for agricultural and livestock use.
  • It is recommended to consult the technical department of Maxtensor Internacional SL regarding which product would be most suitable depending on the application and the type of wire used.
  • Do not use the product outside the recommended diameter range.
  • Do not exceed the load limit of any product.
  • The indicated load limit is a static load value, and depends on the type of wire and diameter used.
  • If you think the product will be subjected to high loads, use wire diameters close to the maximum value of the range indicated on the product.
  • Dynamic loads produced by wind, impacts, vibrations, can significantly increase the service loads on the wire.
  • It should be noted that dirt, chemicals, and insects, among other things, inside the product can impair its proper functioning.
  • Leave a minimum length of 10 cm from the free end of the wire to the product's outlet hole.
  • Secure the free ends of excess wire.
  • Regularly check the condition of the installation.

Features

Why Use This Product

View full details
Product Product subtotal Quantity Price Product subtotal
Maxtensor MXL2-DT Wire Grip
Maxtensor MXL2-DT Wire Grip
$53.19/ea		 $0.00
$53.19/ea $0.00
Connector and tensioner Wire diameter range
MXS2-DT 1.4 – 2.2 mm (0.06″ – 0.09″)
MX2 1.8 – 3.2mm (0.07″ – 0.13″)
MX2-DT 1.8 – 3.2mm (0.07″ – 0.13″)
MXL2-DT 3.3 – 4.2 mm (0.13″ – 0.17″)

HOW TO INSERT THE WIRES

The connectors and tensioners have two opposite entry holes through which the wires are inserted (2).

(2) Important: Leave a minimum length of 10 cm from the free end of the wire to the outlet hole of the tensioner (see image).

Diagram showing how to insert wires into the connector.

HOW TO ADJUST AND RELEASE THE WIRE

The MAXTENSOR® MXL2-DT connector and tensioner can be adjusted (3) and the wire re-tensioned as many times as necessary.

(3) Provided the wire is free of tension

For this purpose, it has a small hole on each side of the body, through which the MX-HDI or MX-HDIM tools are inserted. By inserting these tools and pressing lightly into the hole, the wire is released so that it can be adjusted or removed again.

Diagram showing how to adjust and release the wire.

HOW TO TIGHTEN THE WIRES

After the wires are inserted, they can be tensioned by pulling one of them with the MAXTENSOR® MX-AC tensioning tool.

Save up to 70% of time with MAXTENSOR® compared to traditional joining systems.

Using the tensioning tool to tighten the wires.
