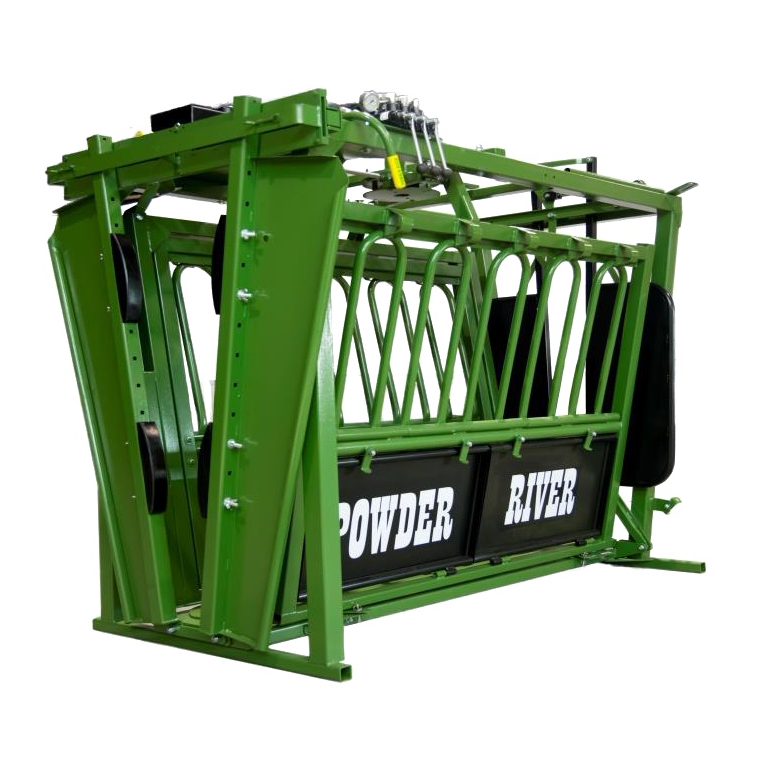

H2000 Hydraulic Squeeze Chute
H2000 Hydraulic Squeeze Chute
Powder River
SKU:PR-002-55000
Couldn't load pickup availability
Starting at $304.61/mo with approved credit.
Financing
Freight Charge
This item may require freight charges due to the weight or size. Our friendly staff will contact you to set up your delivery. If you have any questions please Contact Us or call 512-264-2024.
Without sacrificing the functionality of more expensive chutes and still retaining its tough Powder River DNA, the H2000 Hydraulic Chute is a great option for those looking for a bit more than a manually operated chute.
The H2000 Hydraulic Squeeze chute is an all-purpose squeeze chute that is rated for most animal sizes. The headgate and center squeeze both utilize rack and pinion mechanisms that aid in keeping operator and animal away from moving parts and dangerous linkages. This unit includes the Neck Extender (not shown).
Enjoy a chute with the features you really want while processing your cattle. Split tailgate, great side access, split kickpans that are removable, Neck-Extenders for head control, V-Style Dual Sided Squeeze, Adjustable Width Floor, Side Exit release with safety features, Fast and Secure headgate with fine adjustment.
Notable Features:
-
Rack and pinion hydraulic linkages
-
Left-Hand Controls
-
110v or 220v Power Options
-
Split Kickpans
-
Split Hydraulic Tailgate
-
Right Side Exit (Side Exit)
-
Easy Adjustable Floor
-
Hydraulic Cylinders are up and tucked away
-
5 Year warranty on chute (less hydraulics)
Physical Dimensions:
-
Chute Weight: 1611 lbs.
-
Overall Length: 96” (98” with clevis)
-
Overall Height: 85”
-
Widest Point: 53”
Internal Dimensions:
-
Stanchion Height: 64”
-
Tailgate Height: 65.5”
-
Chute Side Height: 60”
Electrical Considerations:
Motor Spec: 2 HP, 1750 RPM, 110v or 220v, 18 amp110/9 amp 220
Pump Spec: 2 Stage, 13 GPM
Valve Body: 3 Spool
System Pressure: 1000 lbs. (release set at factory)
Hydraulics Warranty: 1 Year
Generator Operation requires 8500 watt cold startup
