Calf Table Hydraulic Tip Option - Hi-Hog

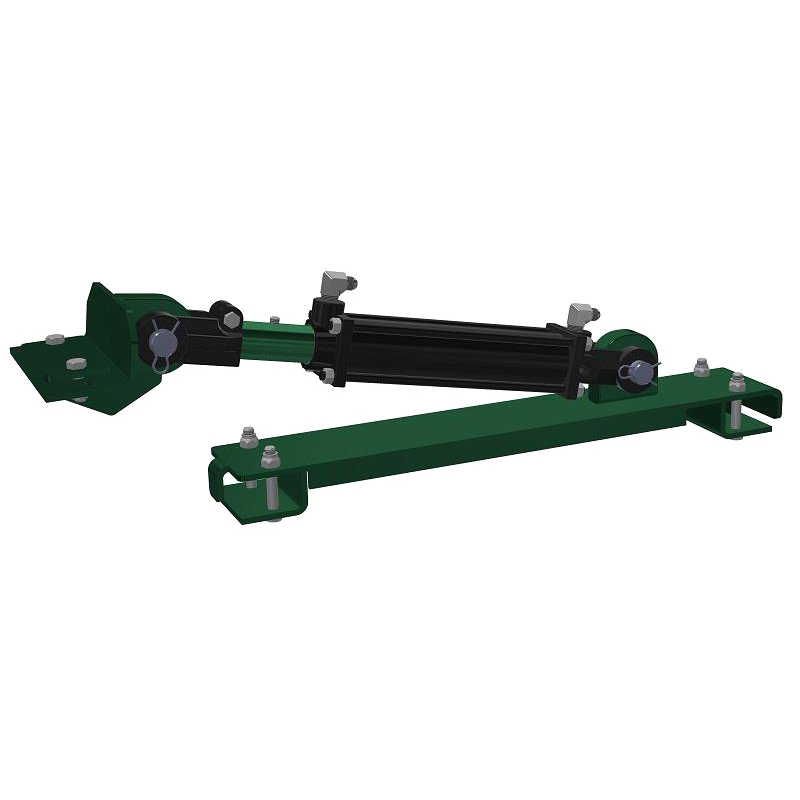

The hydraulic tipping kit (item 58) will bolt directly to your Hi-Hog calf tipping chute with neck extender (item 55). Simply attach your hydraulic lines to the cylinder fittings (#6 O-Ring Flat Face Fittings).

• The hydraulic tipping option includes mounting brackets, fittings and 8″ ram

• The valve and pump are not included

To use this option, you will require an existing hydraulic system equipped with a valve and pump. If you already have a Hi-Hog hydraulic cattle squeeze with an extra valve you have what you need. Using the hydraulics from a tractor will also work. You will require 1200 psi to operate the tipping action.

Note: The hydraulic kit will also work on Hi-Hog’s previous calf tipping table model; the double-header calf table, item #56. However, you will be required to drill holes in the body floor to mount the ram bracket.

Note: This table is not recommended for horned cattle, including team roping and dogging stock.
