Box Stall - Partition Custom Length - Hi-Hog

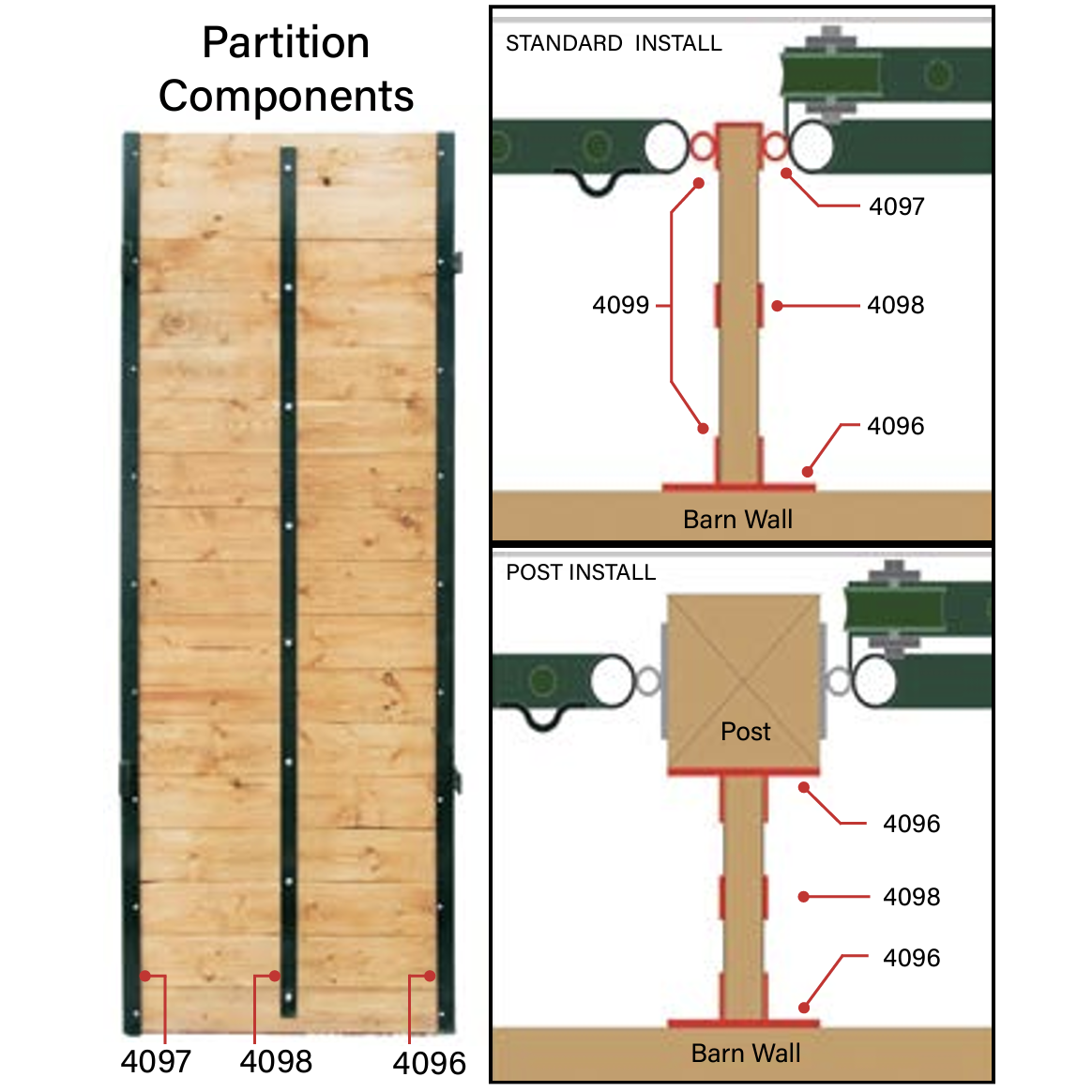

When our standard 10′ and 12′ partition lengths will not work in your barn there is a simple and affordable solution. Custom partition lengths can be achieved by combining our Partition Channel Sets (item 4099) with our Partition Strap Sets (Item 4098). Simply cut your lumber to the required length and slide them into the partition channel sets. To tie the individual boards into a rigid wall attach a strapping set to either side of your all custom length all plank partition.

The partition channel set includes one channel designed to bolt to the back wall of your barn and one channel designed to pin in between two box stall fronts.

NOTE: If your partitions need to span from the back wall to the back of a column then you should order the channel set to include two wall channels. When this combination is used to create a partition between two stalls, you can remove the planks in order to create a larger foaling stall.

NOTE: We recommend one strapping set for partitions less than 10′ and 2 strapping sets for partitions up to 14′ in length.
