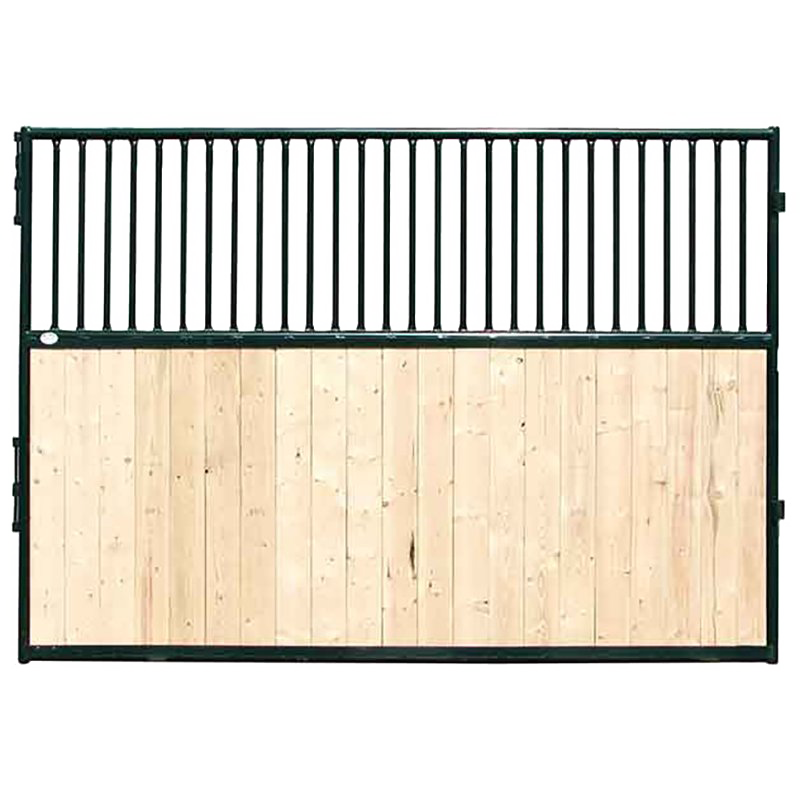

Box Stall - Open Top Partition - Hi-Hog

Hi-Hog’s open top partitions are available in 10′ and 12′ lengths

• Custom lengths are available

• Partitions are 7’ high

• Heavy duty 1.9″ OD, 14-gauge steel frame provide safety and security for your horse

Designed for quick installation

The partitions come with three connectors at one end, and one pin and connector at the other end. The end with the three connectors normally pins in between your stall fronts. The end with the single connector with pin either connects to wall mounted brackets or to another partition panel used to create the rear wall of your stall.

The pin connections are designed for both easy setup and a solid finished installation.

The bottom 52” of the open top partition has a solid finish. The top 32” of the partition is filled with vertical bars with a maximum of 3” of spacing. The open top provides improved air circulation and greater visual stimulus for your horse(s).

Channels are built into the frame to receive your lumber. Simply slide the lumber into the partition channel and secure the last board in place. Designed for 2×6 planed dimensional lumber.

NOTE: Lumber is not included with any of Hi-Hog’s stall frames. We can however let you know how much wood you will require based on your proposed stall order
