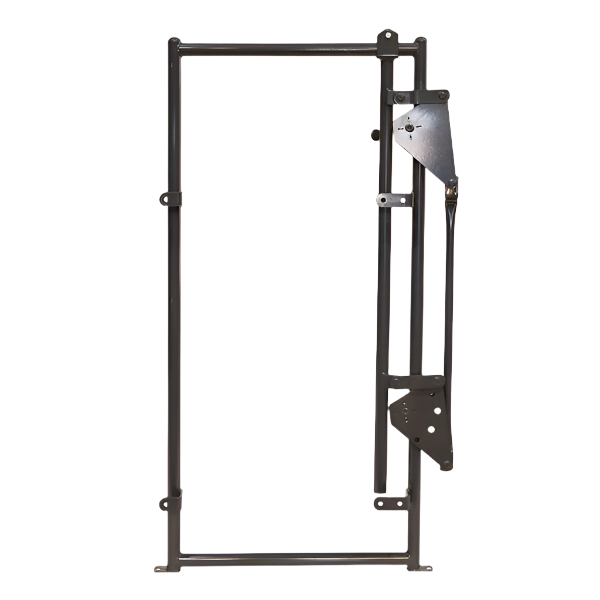

Adjustable Alley Frame w/Squeeze Chute Attachment

Adjustable Alley Frame w/Squeeze Chute Attachment

Priefert

$589.00 USD
$655.00 USD $589.00 USD
Sale Call to Order

P-AAFC20GY
Not eligible for free shipping

Freight Charge
This item may require freight charges due to the weight or size. Our friendly staff will contact you to set up your delivery. If you have any questions please Contact Us or call 512-264-2024.

This adjustable alley frame provides the same support and adjustment flexibility as the AAF20 but also includes squeeze chute attachment brackets.

Adjustable Alley Frame w/Squeeze Chute Attachment

Priefert’s durable Adjustable Alley Frame with Chute Attachment is designed for use with our Premier, Rough Stock Open, and Solid Sweep Systems. The AAFC20 allows for quick and easy attachment of your adjustable alley to a Priefert Squeeze Chute (sold separately). The AAFC20 will attach directly to our Model S01, S0191, or S04 chute. Designed to work with the standard Adjustable Alley Frame, the alley can be adjusted to one of four widths to better fit the size of cattle being worked. Sturdy pin connectors on the frame secure it to the alley panels. This product features an Architectural Grade Powder Coat finish to help it resist rust and scratching, while UV inhibitors in the powder help the adjustable alley frame resist fading, ensuring that your product holds up well and looks great for many years to come.

View full details

Features

    • The Sheeted Adjustable Alley Frame with Chute Attachment allows for quick and easy attachment of your adjustable alley to a Priefert Squeeze Chute (sold separately). The SAAFC will attach directly to our Model S01, S0191, or S04 chute.
    • Priefert’s unique Adjustable Alley Frames allow operators to quickly and easily adjust the width of the working alley to better fit the size of cattle being worked.
    • The inside alley width can be set to 18”, 21”, 25”, or 28” wide. The frame-to-panel connection is fixed on one side of the frame, while the connection point on the other side is adjustable. By using the adjustment handle on the side of the frame, the operator is able to slide the panel connection point in or out to effectively change the alley width.
    • This adjustable alley frames help maintain the strength and integrity of an alley and securely connects it to your Priefert Squeeze Chute.
    • Sturdy pin connectors are used to secure the adjustable alley frames to the panels of the alley.
    • Architectural Grade Powder Coat Finish with UV inhibitors add years of life to your investment by helping the product resist rust, scratches and fading.

Specifications

    • Overall Height: 78.5”
    • Inside Height: 74.25”
    • Weight: 102 lbs (All weights approximate)
    • Required to connect alley to a Priefert Squeeze Chute
    • Can be set to maintain alley width of 18”, 21”, 25”, or 28” wide.
    • Constructed from 2” OD 11 gauge tubing
    • Architectural Grade Powder Coat Finish
    • Color: Grey
