Adjustable Alley Frame

Adjustable Alley Frame

Priefert

$607.00 USD
$675.00 USD $607.00 USD
Sale Call to Order

P-AAF20GY
Not eligible for free shipping

Freight Charge
This item may require freight charges due to the weight or size. Our friendly staff will contact you to set up your delivery. If you have any questions please Contact Us or call 512-264-2024.

These reversible and adjustable frames provide support and easily adjust your working alleys from 18”, 21”, 25”, or 28” widths.

Adjustable Alley Frame

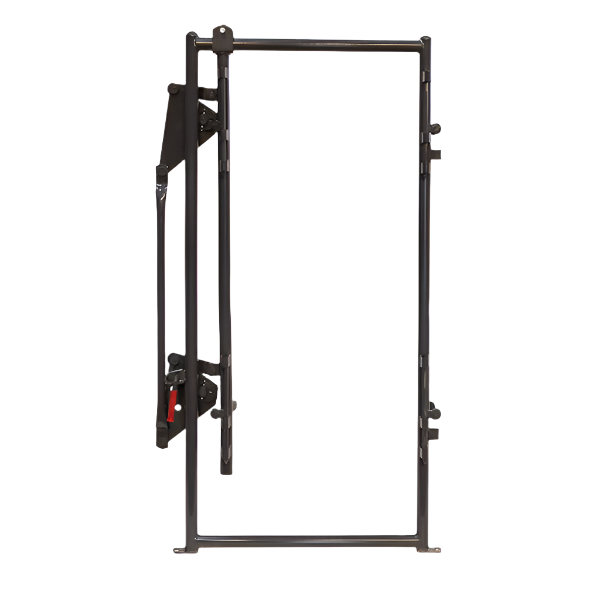

Priefert’s durable Adjustable Alley Frame is designed for use with our Premier, Rough Stock Open, and Solid Sweep Systems. The Alley Frame not only helps to maintain the strength of the alley, but also allows operators to adjust the alley to one of four widths to better fit the size of cattle being worked. Sturdy pin connectors on the frame secure it to the alley panels. This product features an Architectural Grade Powder Coat finish to help it resist rust and scratching, while UV inhibitors in the powder help the adjustable alley frame resist fading, ensuring that your product holds up well and looks great for many years to come.

View full details

Features

    • Designed for use with Priefert’s Premier Sweeps, Rough Stock Open Sweeps, and Sheeted Sweeps, Adjustable Alley Frames should be placed at the ends of each panel in an alley for maximum support.
    • Priefert’s unique Adjustable Alley Frames allow operators to quickly and easily adjust the width of the working alley to better fit the size of cattle being worked.
    • The inside alley width can be set to 18”, 21”, 25”, or 28” wide. The frame-to-panel connection is fixed on one side of the frame, while the connection point on the other side is adjustable. By using the adjustment handle on the side of the frame, the operator is able to slide the panel connection point in or out to effectively change the alley width.
    • These adjustable alley frames help maintain the strength and integrity of an alley.
    • Sturdy pin connectors are used to secure the adjustable alley frames to the panels of the alley.
    • The AAF20 is reversible so that it can be operated from the right or left side.
    • Architectural Grade Powder Coat Finish with UV inhibitors add years of life to your investment by helping the product resist rust, scratches, and fading.

Specifications

    • Overall Height:78.5”
    • Inside Height: 74.25”
    • Weight: 105 lbs (All weights approximate)
    • Can be set to maintain alley width of 18”, 21”, 25”, or 28” wide
    • Constructed from 2” OD 11 gauge tubing
    • Architectural Grade Powder Coat Finish
    • Color: Grey
