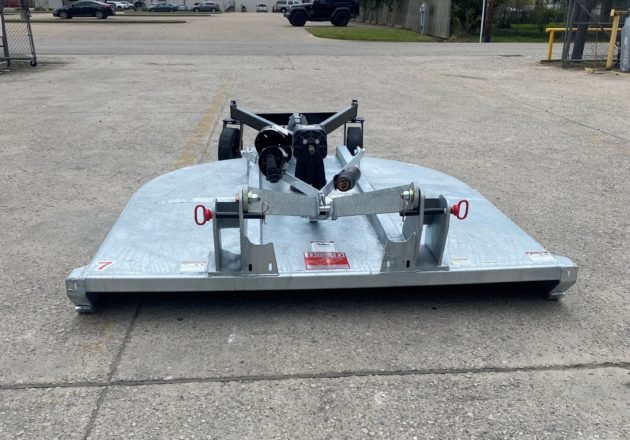

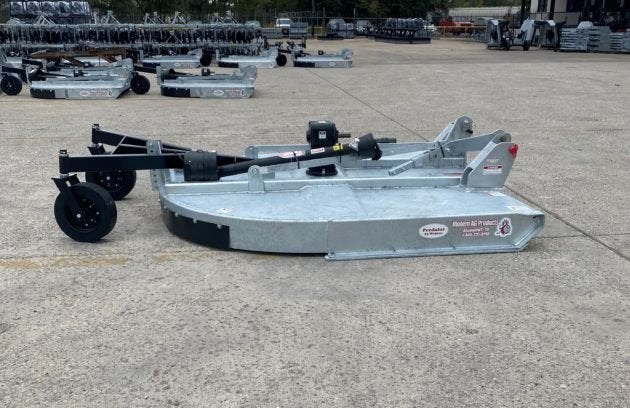

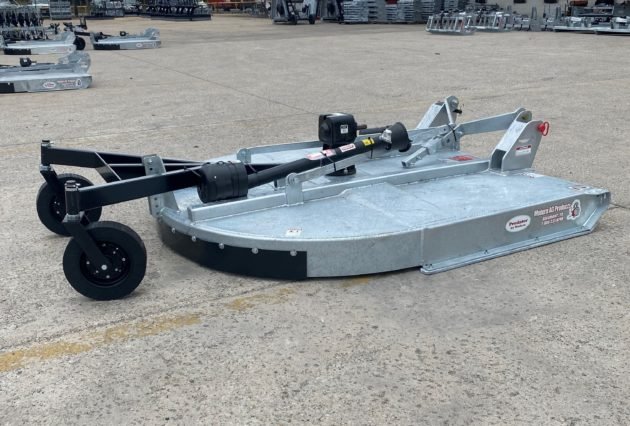

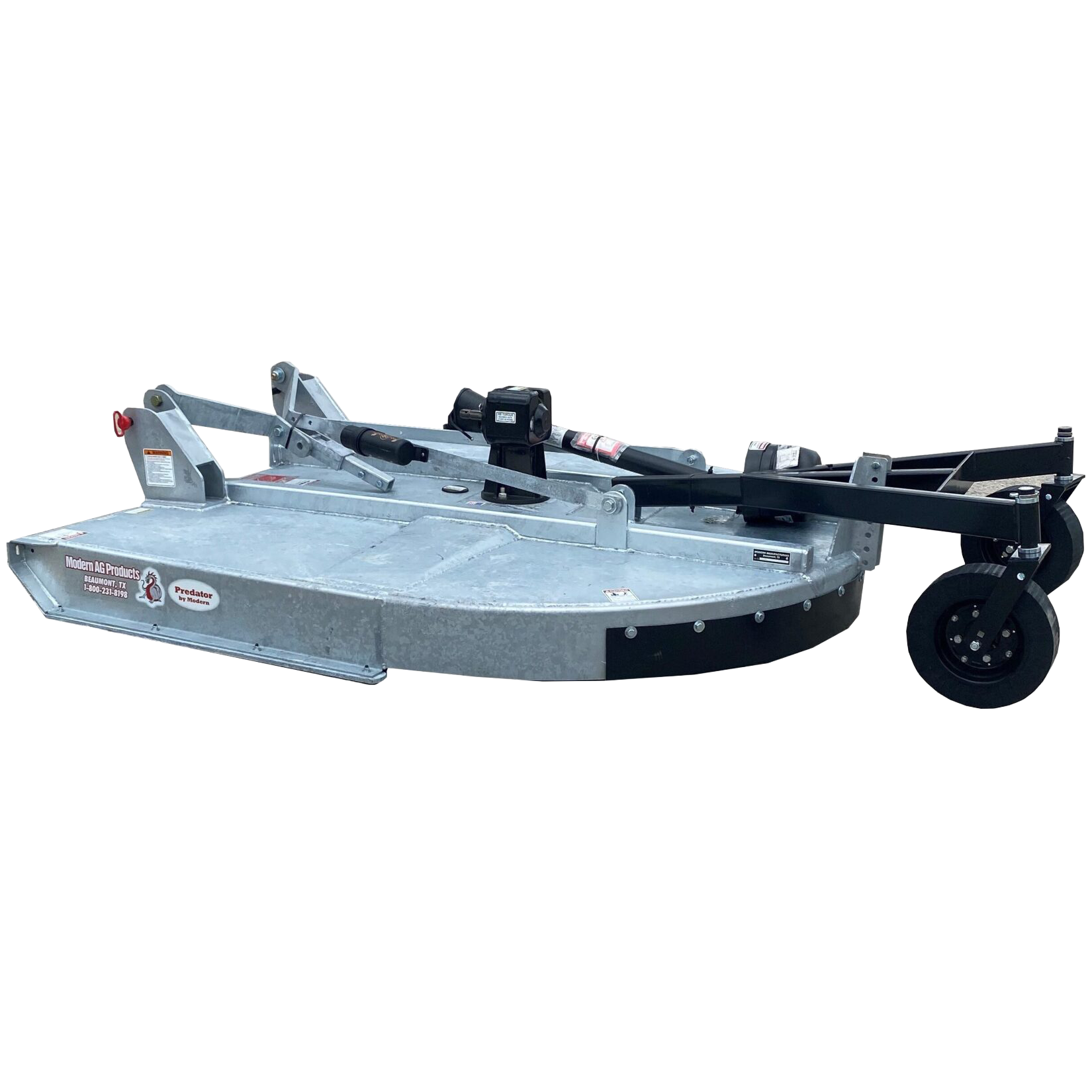

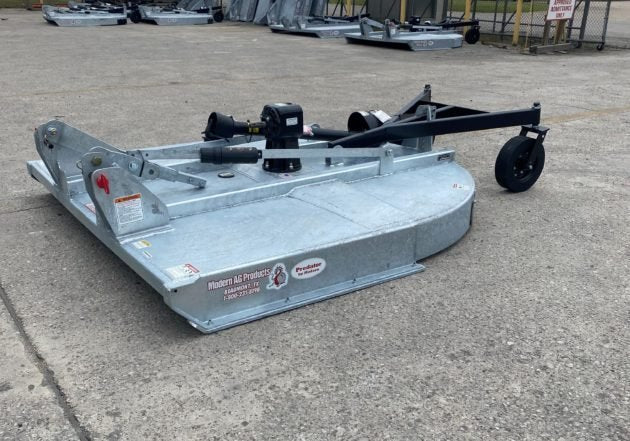

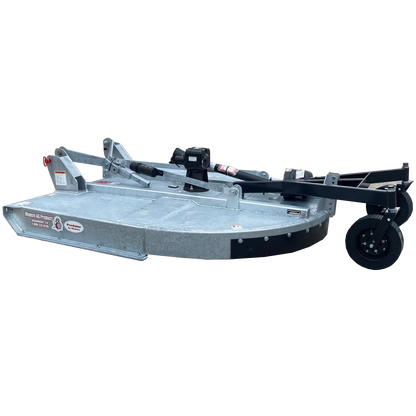

7' Predator - Single Spindle Cutter

The Modern Ag 7' Predator is a CAT. 2 hitch with a 140 HP gearbox and a CAT. 5 heavy duty slip clutch driveline. Modern’s durability and reliability is enhanced further through our hot-dipped galvanized deck & frame.  Our smooth underdecks make for a more efficient mowing surface and less area for rust to begin.

The 7' Predator includes our Red Double Diamond Warranty: 5 Year limited warranty on gearbox and a 10 Year limited warranty on deck rust through.

Rubber guards and dual tailwheels are standard, front & rear chain guards are optional.

Features

• 3/8” gearbox plate
• Heavy duty stump jumper & slip clutch
• Laminated tailwheel
• Solid 3/16" (7 Gauge) Deck
• Double Hitch Pin Connection
• Quick Attach
• 3/4” A Frames
• Dual tail wheels standard
• Cat 2. Hitch

Specifications

Cutting Width . . . . . . . . . . . 84”
Transport Width . . . . . . . . . 90”
Overall Width . . . . . . . . . . . 90”
Overall Length . . . . . . . . . . 100”
Overall Height . . . . . . . . . . 2” - 12”
Blade Overlap . . . . . . . . . . 3”
Hitch . . . . . . . . . . . . . . . . . . Quick Attach Cat. II
Blade Carrier . . . . . . . . . . . Pan Stump Jumpers
Horsepower Required (min) . . . . . . . . . . 50 hp
Main Gearbox or Divider Box* . . . . . . . . . 140 hp
Output Shaft Diameter . . . 2-3/8”
Cut Capacity . . . . . . . . . . . . 4”
Blade Tip Speed:
540 . . . . . . . . . . . . . . . . . . . 17,494 FPM
Driveline Size . . . . . . . . . . . Cat. 5 w/Slip Clutch
Deck Thickness . . . . . . . . . 3/16”
Side Skirt . . . . . . . . . . . . . . 1/4” x 8”
Replaceable Skid Shoes . . Standard
Front Safety Defl ectors . . . Chain Option
Rear Safety Defl ectors:
Rubber Guard Standard with Chain Option
Weight (Approx) . . . . . . . . . 1750 lbs.
Standard Tires . . . . . . . . . . Laminated
Dual Tailwheels . . . . . . . . . Standard
Deck Ring to Protect Deck . . . . . . . . . . . Standard
