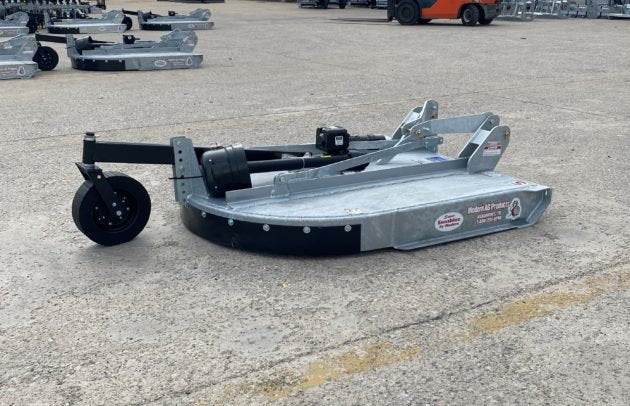

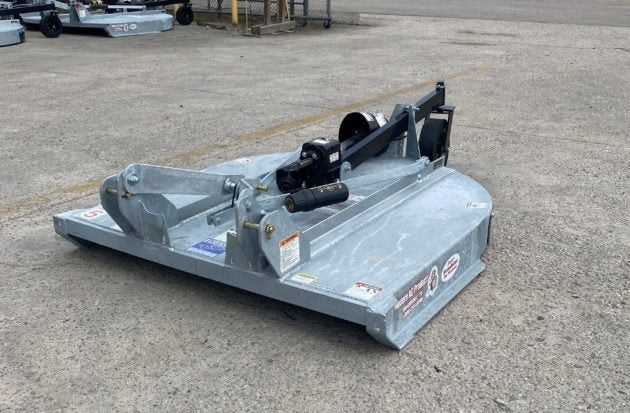

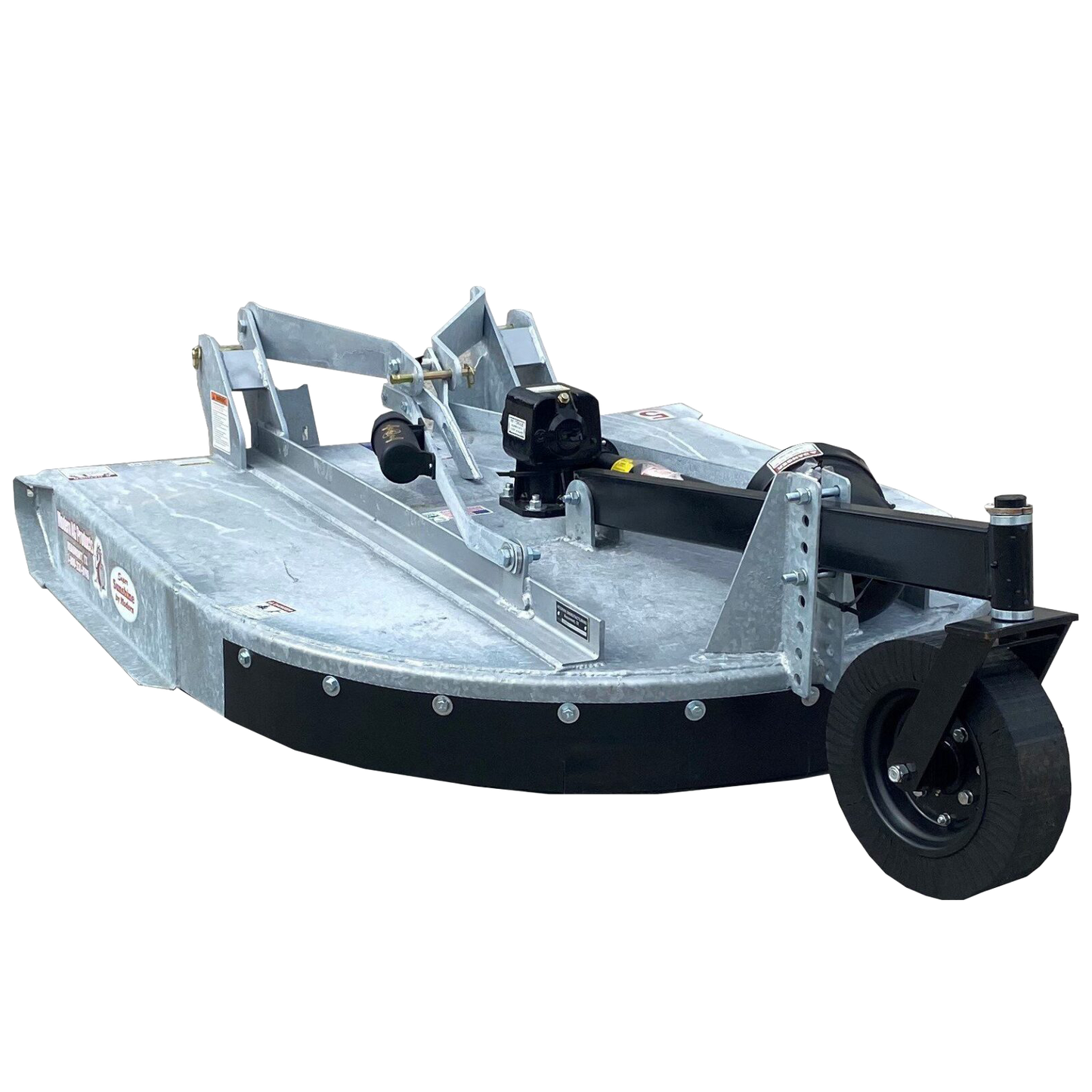

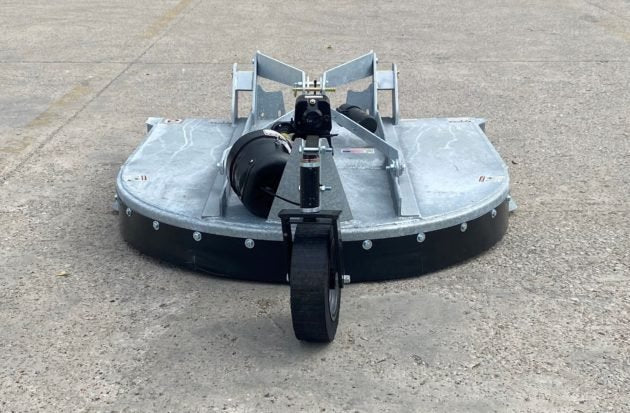

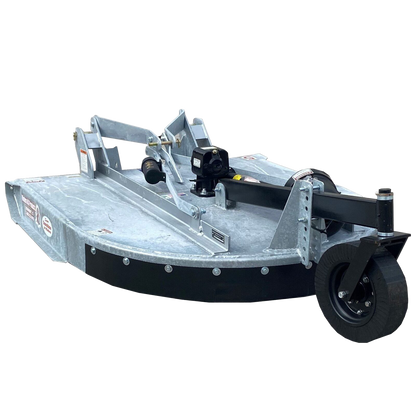

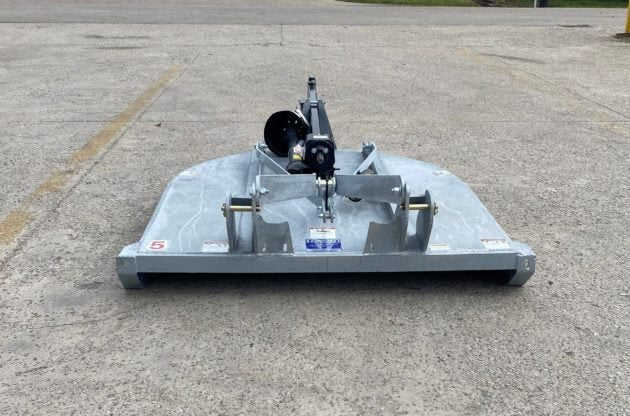

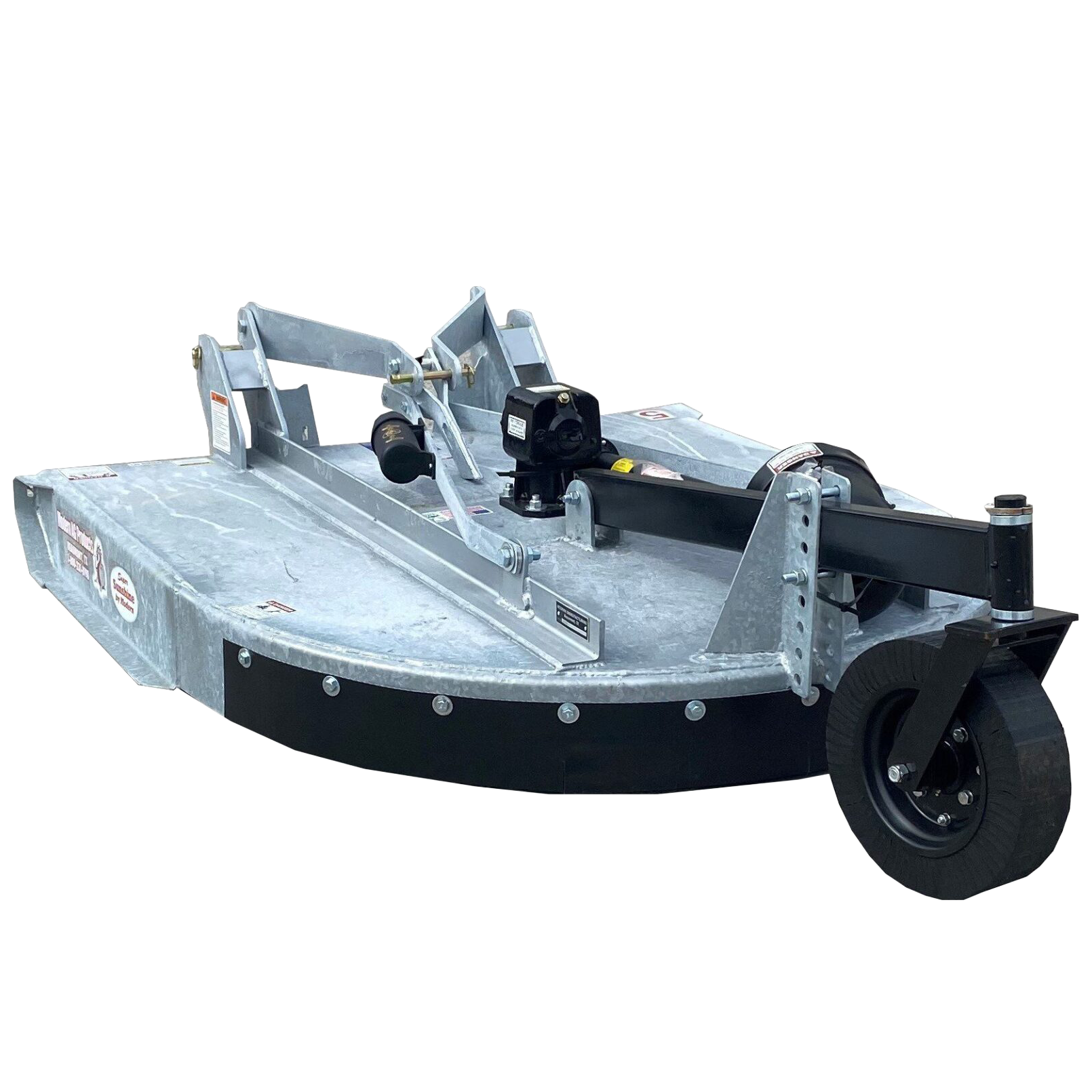

5' Super Sunshine - Single Spindle Cutter

The Modern Ag 5' Super Sunshine gearboxes have a heavy duty 2" 15 spline output shaft for longer life and better capacity. The Super Sunshine is a long-lasting CAT. 1 hitch cutter with a CAT. 3 driveline. Modern’s durability and reliability is enhanced further through our hot-dipped galvanized deck & frame. Our smooth underdecks make for a more efficient mowing surface and less area for rust to begin.

The Super Sunshine Series includes our Blue Double Diamond Warranty: 3 Year limited warranty on gearbox and a 10 Year limited warranty on deck rust through.

Rubber guards are standard, front & rear chain guards are optional.

Features

• New heavy duty 3/8” Gearbox Plate
• Heavy duty stump jumper and laminated tailwheel
• Protected by a splined input shaft slip clutch standard
• Solid top weld
• New smooth rounded rear deck
• Heavy duty tailwheel bracket and boom
• Double steel wall top edge
• One piece body with smooth top
• Upgraded 65 hp gearbox rating with 2”- 15 spline output shaft
• 1/2” A Frames - QA
• Cat. 1 Hitch

Specifications

Cutting Width . . . . . . . . . . . 60”
Transport Width . . . . . . . . . 65”
Overall Width . . . . . . . . . . . 65”
Overall Length . . . . . . . . . . 100”
Cutting Height . . . . . . . . . . 2” - 10”
Hitch . . . . . . . . . . . . . . . . . . Cat. I 3 PT & Quick Attach
Blade Carrier . . . . . . . . . . . Pan Stump Jumpers
Horsepower Required (min):
60” . . . . . . . . . . . . . . . . . . . . 25 hp
Gearbox Rating* . . . . . . . . 65 hp
Cut Capacity . . . . . . . . . . . . 2.5”
Blade Tip Speed:
60” . . . . . . . . . . . . . . . . . . . . 16,519 FPM
Driveline Size . . . . . . . . . . . Cat. 3 w/Slip Clutch
Deck Thickness . . . . . . . . . 3/16”
Slip Clutch Protection . . . . Standard
Front Safety Defl ectors . . . Chain Option
Rear Safety Defl ectors:
Rubber Guard Standard with Chain Option
Weight (Approx) . . . . . . . . . 725 lbs.
Standard Tires . . . . . . . . . . Laminated
Side Skirt . . . . . . . . . . . . . . 1/4” x 8”
