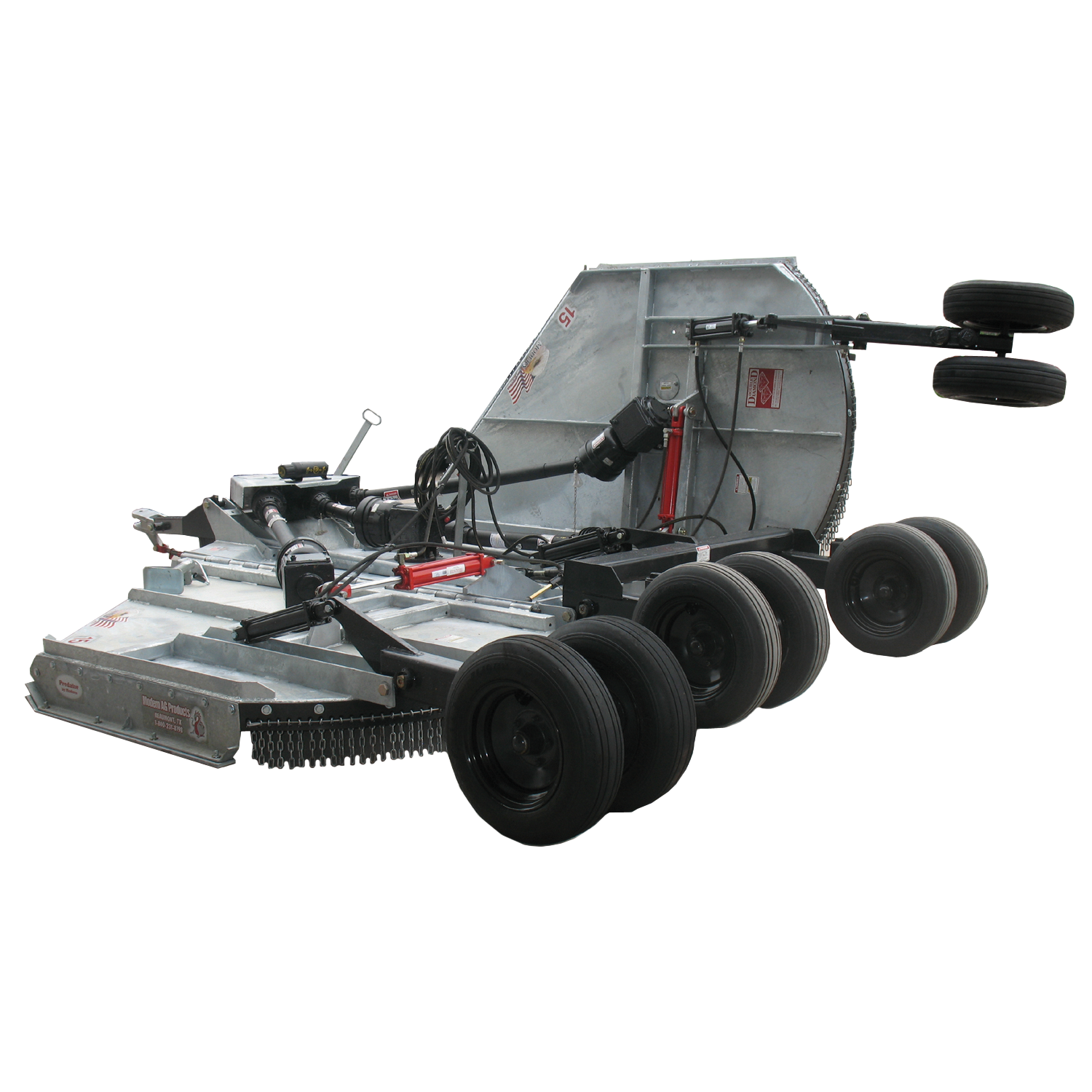

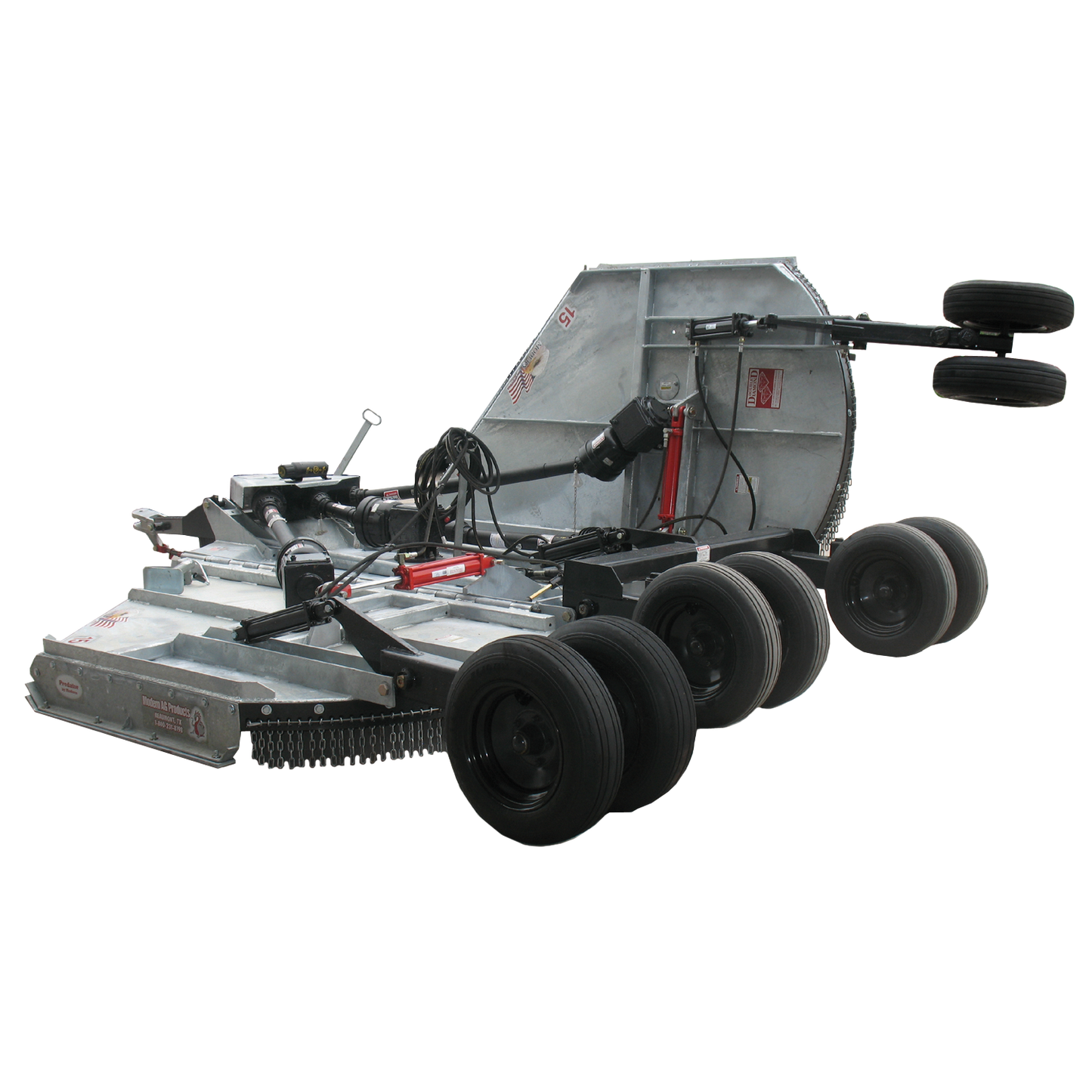

15' Super Predator - Flex Wing Cutter
15' Super Predator - Flex Wing Cutter
Modern Ag
SKU:MA-001-1501 - 040-2011 - 040-0810-6
Couldn't load pickup availability
Starting at $778.33/mo with approved credit.
Financing
Freight Charge
This item may require freight charges due to the weight or size. Our friendly staff will contact you to set up your delivery. If you have any questions please Contact Us or call 512-264-2024.
The Modern Ag 15' Super Predator's front and rear chains, dual wing wheels,
hydraulic level lift and used aircraft tires are standard equipment. Modern's durability and reliability is enhanced further through our hot-dipped galvanized deck & frame. Our updated hydraulic phasing level lift system is a superior improvement over the outdated mechanical lift system.
The smooth underdecks make for a more efficient mowing surface and less area for rust to begin. Front & rear chain guards are standard.
The 15' Super Predator includes our Red Double Diamond Warranty: 5 Year limited warranty on gearbox and a 10 Year limited warranty on deck rust through.
Specifications
Cutting Width . . . . . . . . . . . 180”
Transport Width . . . . . . . . . 90”
Overall Width . . . . . . . . . . . 187”
Overall Length . . . . . . . . . . 180”
Cutting Height . . . . . . . . . . 2”-15”
Blade Overlap . . . . . . . . . . 6”
Wing Lift Hydraulics . . . . . Standard
Wing Flex . . . . . . . . . . . . . . 90° Up/22° Down
Jackstand . . . . . . . . . . . . . . Standard
Hitch . . . . . . . . . . . . . . . . . . Swivel Clevis
Blade Carrier . . . . . . . . . . . Pan Stump Jumpers
Horsepower Required (min) . . . . . . . . . . . . . . . . . . 50 hp
Main Gearbox or Divider Box* . . . . . . . . . 255 hp
Outboard Gearbox or Center & Wings* . . . . . . 210 hp
Output Shaft Diameter . . . 2-3/8”
Cut Capacity . . . . . . . . . . . . 3-1/2”
Blade Tip Speed:
Main or Center 540 . . 15,268 fpm
1000 . .15,072 FPM
Wings 540 . . 15,016 fpm
1000 . .14,996 FPM
Driveline Size: Main . . . . . . . . . . . . . . . . . . Cat. 5 Constant Veloc.
Outboard Center or Wings . . . . . . . . . . . . . . Cat. 4 w/Slip Clutch
Deck Thickness . . . . . . . . . 3/16”
Side Skirt . . . . . . . . . . . . . . 1/4” x 10 1/4”
Replaceable Skid Shoes . . Standard
Safety Chains . . . . . . . . . . . Standard (Front & Rear)
Weight (Approx) . . . . . . . . . 6000 lbs.
Standard Tires . . . . . . . . . . Used Aircraft Tires
Dual Wingwheels . . . . . . . . Standard
Hydraulic Level Lift . . . . . . Standard
Deck Rings to Protect Deck . . . . . . . . . . . Standard
