135 Degree Sweep w/ 24' Adj Alley and Chute Attachment

135 Degree Sweep w/ 24' Adj Alley and Chute Attachment

Priefert

$10,574.00 USD
$0.00 USD $10,574.00 USD
Sale Call to Order

P-PS13520-9GY

Starting at $240.32/mo with approved credit.

Financing
Not eligible for free shipping

Freight Charge
This item may require freight charges due to the weight or size. Our friendly staff will contact you to set up your delivery. If you have any questions please Contact Us or call 512-264-2024.

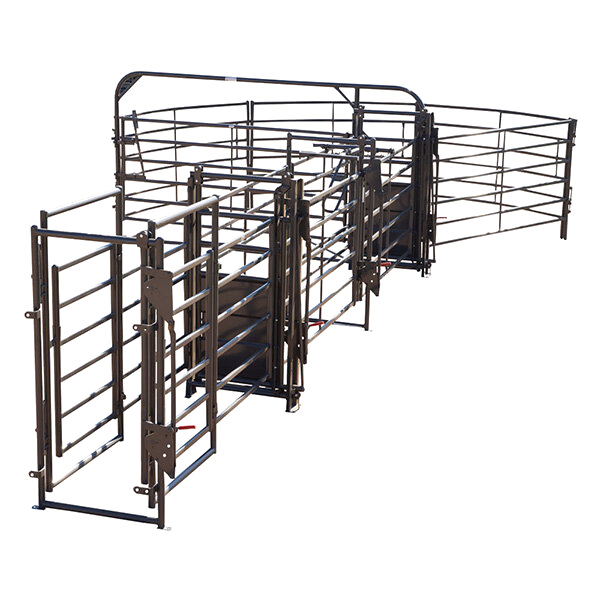

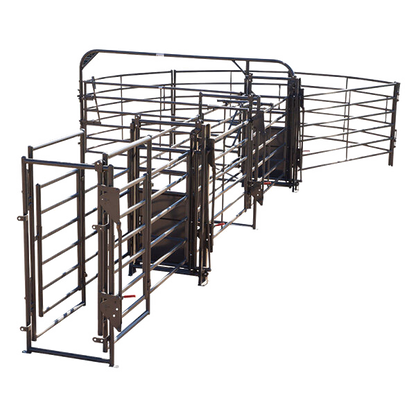

This 135-degree tub includes a 24' adjustable alley with a chute attachment, making this system ready to hook to your Priefert squeeze chute.

135 Degree Sweep w/ 24' Adj Alley & Chute Attachment

This rugged, completely reversible crowding system includes a 135-degree sweep and a 24’ adjustable alley. Whether you are using it as part of a permanent or portable working corral, it provides a durable and versatile crowding system that helps reduce the labor needed for working cattle. This system is built with Premier Panels, our number one selling cattle panel. By pivoting our 10’ wide sweeping bow gate at the inside corner of the alley entrance, livestock flow is improved by eliminating corners that are found in other sweep systems. Sturdy pin connectors are used to assemble the sweep tub and alley components. The alley frame is designed to allow for quick and easy connection to Priefert’s Premier Alley Panels with pin connectors. Preifert’s Premier Alley Preg Panels give the operator secure access to the back of the chute for AI or palpation work. The adjustable alley allows users to quickly and easily adapt the alley width to the size of animals being worked, while a “no-back” Alley Stop helps prevent cattle from backing out of the alley. This system also includes 2 Adjustable Alley Gates that serve as block gates and an Adjustable Alley Frame with Chute Attachment so that the alley is ready to attach directly to your Priefert Squeeze Chute (sold separately). The attractive and durable Architectural Grade Powder Coat Finish with UV inhibitors will add years of life to your investment by helping this system resist rust, scratches, and fading.

View full details

Features

    • This Premier Open Sweep is great for permanent corrals and versatile enough for portable applications.
    • 135-degree sweep is easily reversible so that cattle can be loaded from either side of the working alley, and can be expanded into a complete corral system with the purchase of additional pieces.
    • By pivoting our 10’ wide sweeping bow gate at the inside corner of the alley entrance, livestock flow is improved by eliminating corners that are found in other sweep systems.
    • “Tough Enough for Cattle, Safe Enough for Horses,” this sweep is constructed from our number one selling cattle panel, the Premier Panel.
    • Premier Panels are constructed from our patented Quadraform™ tubing to allow for maximum strength and flexibility. These panels feature single piece drilled stays to provide extra stability.
    • Sturdy pin connectors provide secure connection points that allow for quick and easy assembly of the sweep tub and alley components.
    • The 10’ wide Premier Sweep Gate works as the sweep gate, pushing cattle into the working alley. This gate features a 7’ tall bow frame for added stability and a Double Piston Lever Latch.
    • The two Premier Preg Panels make it easy for you to palpate or AI cattle by giving you secure access to the back of your chute.
    • Priefert’s unique Adjustable Alley Frames allow operators to quickly and easily adjust the width of the working alley to better fit the size of cattle being work. The alley can be set to 18”, 21”, 25”, or 28” wide.
    • The Adjustable Alley Gates serves as a block gate and automatically adjust their opening width to that of the alley. One is located at the opening of the sweep into the alley, while the other is located at the rear of the Preg Panels in the alley.
    • The Adjustable Alley Frame with Chute Attachment is designed to make attaching a Priefert Squeeze Chute to the end of your alley quick and easy.
    • With no tools required, the effective height of the “no-back” Alley Stop can be quickly set to prevent the backing of bulls, cows, and calves.
    • Architectural Grade Powder Coat Finish with UV inhibitors add years of life to your investment by helping the product resist rust, scratches, and fading.

Specifications

    • Alley Length: 24’
    • Alley Frame Inside Height: 74.25”
    • Panel Height: 64”
    • Inside Alley Width Settings: 18” – 21” – 25” – 28”
    • Bow Gate Frame Height: 7’ (approximate height)
    • Premier Sweep Gate constructed from 2” OD Round™ 16 gauge tubing with 1.050” OD single piece vertical stay, bow frame constructed from 2.375” OD 12 gauge tubing.

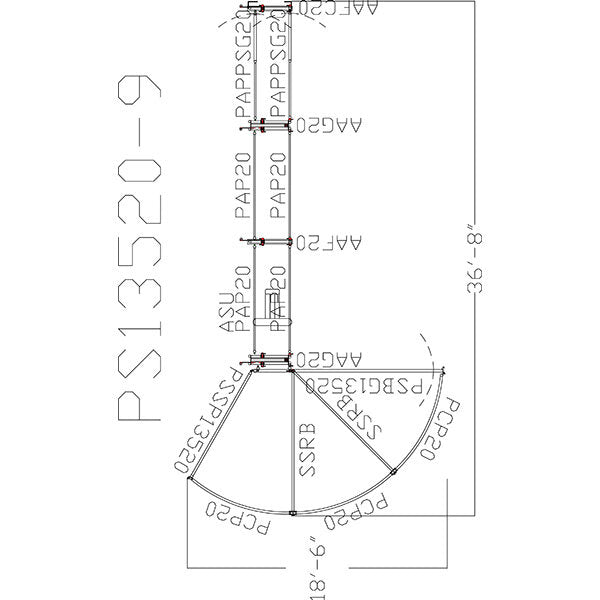

    • PS13520-9 includes: 1- 10’ Premier Sweep Gate with Alley Frame (PSBG13520), 3 – Premier Sweep Curve Panels (PCP20), 1 - Premier Sweep Straight Panel (PSSP13520), 2 – Sheeted Sweep Radius Bars (SSRB), 4- 8’ Premier Alley Panels (PAP20), 2- Premier Alley Preg Panels (PAPPSG20), 1- Rough Stock Post Male/Female (RSCPMF), 1- Sheeted Sweep Connector Post (SSCP), 2- Adjustable Alley Gates (AAG20), 1- Adjustable Alley Frame (AAF20), 1- Adjustable Alley Frame with Chute Attachment (AAFC20), and 1- “no-back” Alley Stop (ASU)
    • Architectural Grade Powder Coat Finish
    • Color: Grey
