135 Degree Premier Open Sweep with 24' Alley

135 Degree Premier Open Sweep with 24' Alley

Priefert

$5,335.00 USD
$0.00 USD $5,335.00 USD
Sale Call to Order

P-PS13520-3GY

Starting at $121.25/mo with approved credit.

Financing
Not eligible for free shipping

Freight Charge
This item may require freight charges due to the weight or size. Our friendly staff will contact you to set up your delivery. If you have any questions please Contact Us or call 512-264-2024.

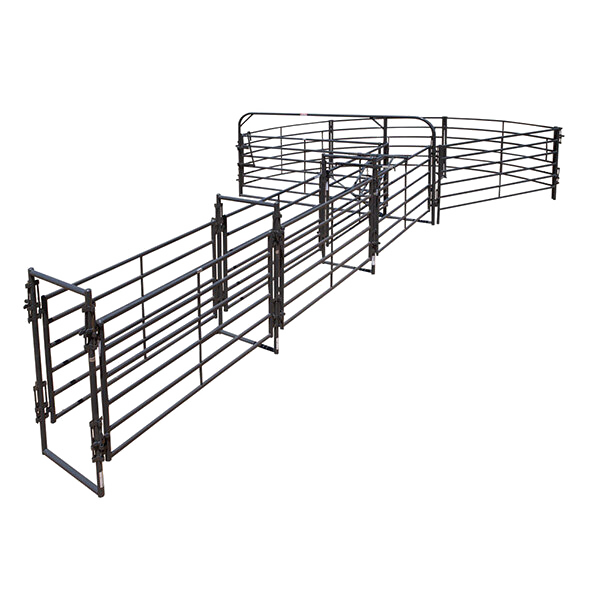

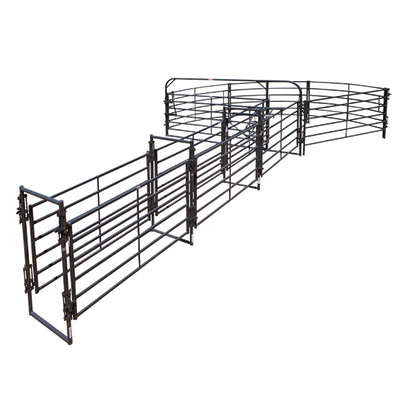

This rugged, completely reversible crowding system includes a 135-degree sweep and a 24' fixed alley.

PS13520-3 135 Degree Premier Open Sweep with 24’ Alley

This rugged, completely reversible crowding system includes a 135-degree sweep and a 24’ fixed alley. Whether you are using it as part of a permanent or portable working corral, it provides a durable and versatile crowding system that helps reduce the labor needed for working cattle. This system is built with Premier Panels, our number one selling cattle panel. By pivoting our 10’ wide sweeping bow gate at the inside corner of the alley entrance, livestock flow is improved by eliminating corners that are found in other sweep systems. Sturdy pin connectors are used to assemble the sweep tub and alley components. The alley frame is designed to allow for quick and easy connection to Priefert’s Premier Alley Panels with pin connectors. The Alley Frames maintain the strength and support of the 28” wide working alley and the “no-back” Alley Stop can be easily adjusted to prevent cattle from backing out of the alley. The attractive and durable Architectural Grade Powder Coat Finish with UV inhibitors will add years of life to your investment by helping this system resist rust, scratches, and fading.

View full details

Features

    • This Premier Open Sweep is great for permanent corrals and versatile enough for portable applications.
    • 135-degree sweep is easily reversible so that cattle can be loaded from either side of the working alley, and can be expanded into a complete corral system with the purchase of additional pieces.
    • By pivoting our 10’ wide sweeping bow gate at the inside corner of the alley entrance, livestock flow is improved by eliminating corners that are found in other sweep systems.
    • “Tough Enough for Cattle, Safe Enough for Horses,” this sweep is constructed from our number one selling cattle panel, the Premier Panel.
    • Premier Panels are constructed from our patented Quadraform™ tubing to allow for maximum strength and flexibility. These panels feature single piece drilled stays to provide extra stability.
    • Sturdy pin connectors provide secure connection points that allow for quick and easy assembly of the sweep tub and alley components.
    • The 10’ wide Premier Sweep Gate works as the sweep gate, pushing cattle into the working alley. This gate features a 7’ tall bow frame for added stability and a Double Piston Lever Latch.
    • The alley frame is designed to allow for a secure connection to Priefert’s Premier Alley Panels with pin connectors.
    • Three powder-coated Alley Frames help maintain the strength and support of the 28” wide fixed alley.
    • With no tools required, the effective height of the “no-back” Alley Stop can be quickly set to prevent the backing of bulls, cows, and calves.
    • Architectural Grade Powder Coat Finish with UV inhibitors add years of life to your investment by helping the product resist rust, scratches, and fading.

Specifications

    • Alley Length: 24’
    • Alley Frame Inside Height: 74.75”
    • Panel Height: 64”
    • Inside Alley Width: 28”
    • Bow Gate Frame Height: 7’ (approximate height)
    • Premier Sweep Gate constructed from 1.9” OD Round™ 16 gauge tubing with 1.050” OD single piece vertical stay, bow frame constructed from 2.375” OD 12 gauge tubing.

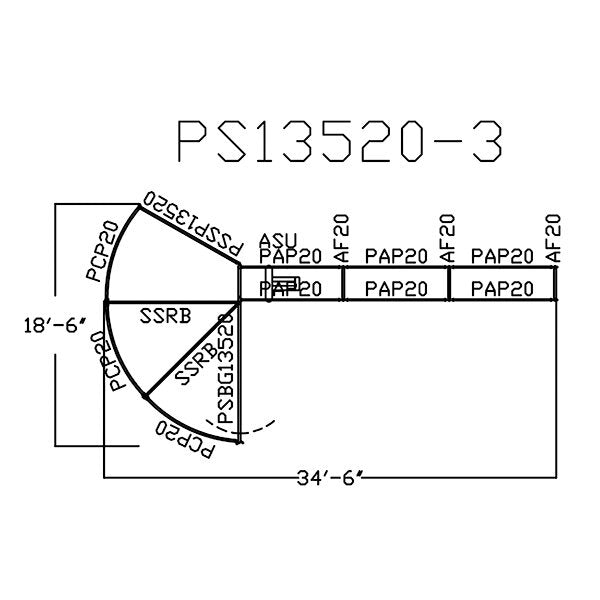

    • PS135-3 includes: 1- 10’ Premier Sweep Gate with Alley Frame (PSBG13520), 3 – Premier Sweep Curve Panels (PCP20), 1 - Premier Sweep Straight Panel (PSSP13520), 2 – Sheeted Sweep Radius Bars (SSRB), 6- 8’ Premier Alley Panels (PAP20), 3- Alley Frames (AF20), and 1- “no-back” Alley Stop (ASU)
    • Architectural Grade Powder Coat Finish
    • Color: Grey
