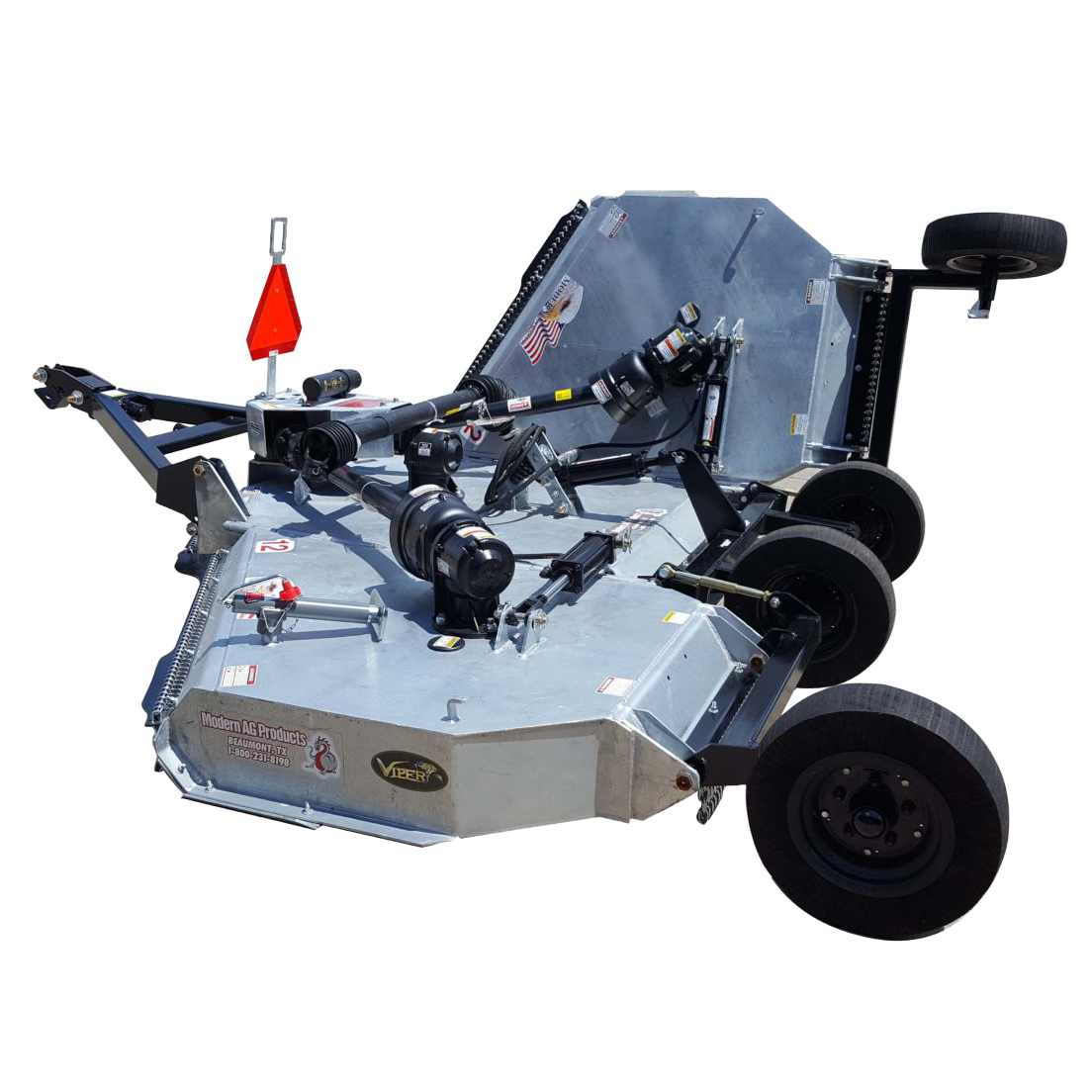

12' Viper - Flex Wing Cutter

12' Viper - Flex Wing Cutter

Modern Ag

$24,584.43 USD
$0.00 USD $24,584.43 USD
Sale Call to Order

MA-001-1202 - 040-0810-4

Starting at $558.73/mo with approved credit.

Financing
Not eligible for free shipping

Freight Charge
This item may require freight charges due to the weight or size. Our friendly staff will contact you to set up your delivery. If you have any questions please Contact Us or call 512-264-2024.

The Modern Ag 12' Viper comes standard with front and rear chain guards. Modern’s durability and reliability is enhanced further through our hot-dipped galvanized deck & frame. Our smooth underdecks make for a more efficient mowing surface and less area for rust to begin.

The 12' Viper includes our Red Double Diamond Warranty: 5 Year limited warranty on gearbox and a 10 Year limited warranty on deck rust through.

View full details

Downloads:

Features

  • 160hp transfer gear box with 120hp center and wing gearboxes
    • Best in class cut capacity
    • Smooth top deck
    • Requires only one hydraulic outlet
    • Replaceable skid shoes
    • Faster blade tip speed
    • All 3” cylinders
    • High Lift Blades

Specifications

  • Cutting Width . . . . . . . . . . . 144”
    Transport Width . . . . . . . . . 90”
    Overall Width . . . . . . . . . . . 151”
    Overall Length . . . . . . . . . . 159”
    Cutting Height . . . . . . . . . . 2”-12”
    Blade Overlap . . . . . . . . . . 6”
    Wing Lift Hydraulics . . . . . Standard
    Wing Flex . . . . . . . . . . . . . . 90° Up/22° Down
    Jackstand . . . . . . . . . . . . . . Standard
    Hitch . . . . . . . . . . . . . . . . . . Swivel Clevis
    Blade Carrier . . . . . . . . . . . Pan Stump Jumpers
    Horsepower Required (min) . . . . . . . . . . 50 hp
    (max) . . . . . . . . . . 120 hp
    Main Gearbox or Divider Box* . . . . . . . . . 160 hp
    Outboard Gearbox or Center & Wings* . . . . . . 120 hp
    Output Shaft Diameter . . . 2”
    Cut Capacity . . . . . . . . . . . . 3”

  • Blade Tip Speed:
    Main or Center 540 . . 16,362 fpm
    Wings 540 . . 15,708 fpm
    Driveline Size:
    Main . . . . . . . . . . . . . . . . . . Cat. 5 Constant Veloc.
    Outboard Center or Wings . . . . . . . . . . . . . . . Cat. 4 w/Slip Clutch
    Deck Thickness . . . . . . . . . 3/16”
    Side Skirt . . . . . . . . . . . . . . 1/4” x 11”
    Replaceable Skid Shoes . . Standard
    Front Safety Chains . . . . . . Standard
    Rear Safety Chains . . . . . . Standard
    Weight (Approx) . . . . . . . . . 3,175 lbs.
    Standard Tires . . . . . . . . . . Laminated 600 x 9
