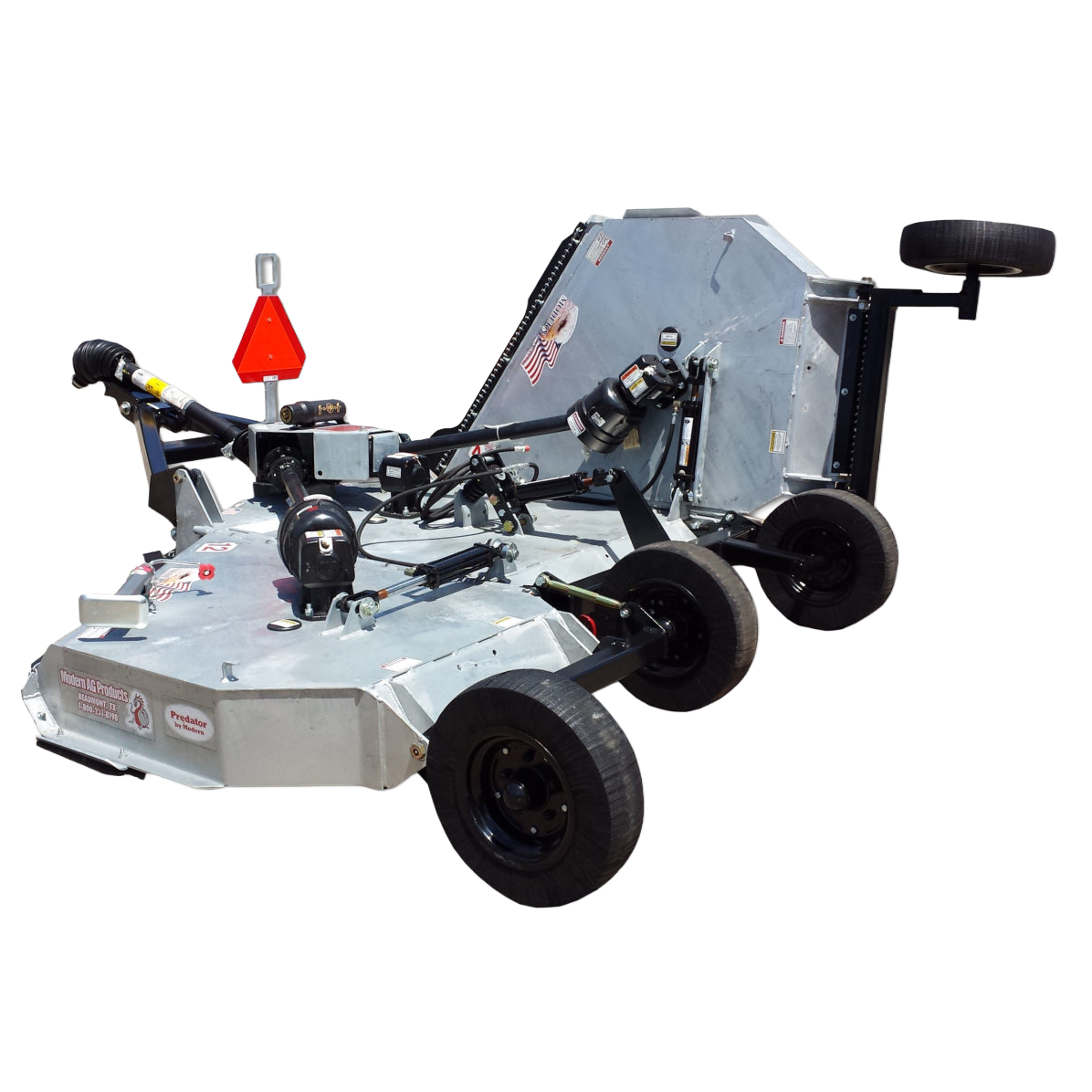

12' Predator - Flex Wing Cutter
12' Predator - Flex Wing Cutter
Modern Ag
SKU:MA-001-1201 - 040-0810-4
Couldn't load pickup availability
Starting at $484.21/mo with approved credit.
Financing
Freight Charge
This item may require freight charges due to the weight or size. Our friendly staff will contact you to set up your delivery. If you have any questions please Contact Us or call 512-264-2024.
The Modern Ag 12' Predator comes standard with front & rear chain guards. Modern’s durability and reliability is enhanced further through our hot-dipped galvanized deck & frame. Our smooth underdecks make for a more efficient mowing surface and less area for rust to begin.
The 12' Predator includes our Red Double Diamond Warranty: 5 Year limited warranty on gearbox and a 10 Year limited warranty on deck rust through.
Downloads:
Features
-
160hp transfer gear box with 70hp center and wing gearboxes
• Best in class cut capacity
• Smooth top deck
• Requires only one hydraulic outlet
• Replaceable skid shoes
• Faster blade tip speed -
Specifications
-
Cutting Width . . . . . . . . . . . 144”Transport Width . . . . . . . . . 90”Overall Width . . . . . . . . . . . 151”Overall Length . . . . . . . . . . 159”Cutting Height . . . . . . . . . . 2”-12”Blade Overlap . . . . . . . . . . 6”Wing Lift Hydraulics . . . . . StandardWing Flex . . . . . . . . . . . . . . 90° Up/22° DownJackstand . . . . . . . . . . . . . . StandardHitch . . . . . . . . . . . . . . . . . . Swivel ClevisBlade Carrier . . . . . . . . . . . Pan Stump JumpersHorsepower Required (min) . . . . . . . . . . 40 hp...(max)(min) . . . . . . . . . . . . . . . . . . 70 hp...(max)Main Gearbox or Divider Box* . . . . . . . . . 160 hp Outboard Gearboxor Center & Wings* . . . . . . 70 hpOutput Shaft Diameter . . . 2”Cut Capacity . . . . . . . . . . . . 2-1/2”
-
Blade Tip Speed:Main or Center 540 . . 16.362 fpmWings 540 . . 15,708 fpmDriveline Size:Main . . . . . . . . . . . . . . . . . . Cat. 4 Constant Veloc. Outboard Centeror Wings . . . . . . . . . . . . . . . Cat. 3 w/Slip ClutchDeck Thickness . . . . . . . . . 3/16”Side Skirt . . . . . . . . . . . . . . 1/4” x 11”Replaceable Skid Shoes . . StandardFront Safety Chains . . . . . . StandardRear Safety Chains . . . . . . StandardWeight (Approx) . . . . . . . . . 3,020 lbs.Standard Tires . . . . . . . . . . Laminated 600 x 9
