10' Predator - Offset Flex Cutter

10' Predator - Offset Flex Cutter

Modern Ag

$27,810.46 USD
$0.00 USD $27,810.46 USD
Sale Call to Order

MA-001-1020 - 040-2001 - 040-0810-5

Starting at $632.05/mo with approved credit.

Financing
Not eligible for free shipping

Freight Charge
This item may require freight charges due to the weight or size. Our friendly staff will contact you to set up your delivery. If you have any questions please Contact Us or call 512-264-2024.

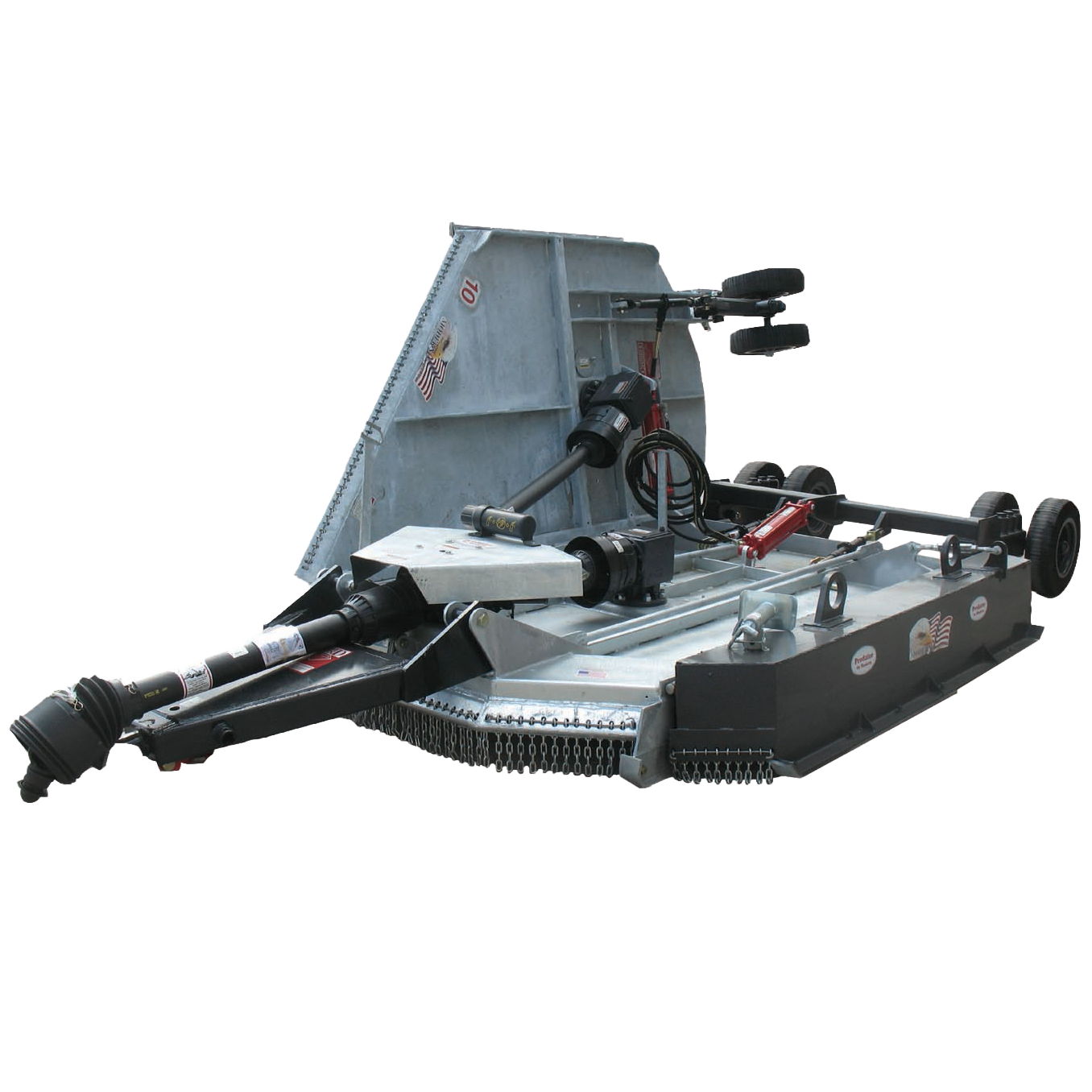

The Modern Ag 10' Offset Flex Predator has a 255 HP transfer gearbox with 210 HP center and wing gearboxes. Modern’s durability and reliability is enhanced further through our hot-dipped galvanized deck & frame.  Our smooth underdecks make for a more efficient mowing surface and less area for rust to begin.

The 10' Offset Flex Predator includes our Red Double Diamond Warranty: 5 Year limited warranty on gearbox and a 10 Year limited warranty on deck rust through.

Rubber guards are standard, front & rear chain guards standard, including optional aircraft tires. Available with left or right weight box, specify with order.

View full details

Downloads:

Features

Specifications

    • Cutting Width: 124”
    • Transport Width: 96”
    • Overall Width: 140”
    • Overall Length: 180”
    • Cutting Height: 2” - 15”
    • Blade Overlap: 6 ”
    • Wing Lift Hydraulics: Standard
    • Wing Flex: 90° up / 22° down
    • Jackstand: Standard
    • Hitch: Swivel Clevis
    • Blade Carrier: Pan Stump Jumpers
    • Horsepower Required (min): 50 hp
    • Main Gearbox or Divider Box*: 255 hp
    • Outboard Gearbox or Center & Wings*: 210 hp
    • Output Shaft Diameter: 2-3/8”
    • Cut Capacity: 3-1/2”

  • Blade Tip Speed:

    • Main or Center 540: 15,268 FPM
    • Outboard 540: 15, 016 FPM

    Driveline Size:

    • Main-Pull Type: Cat. 5 Constant Velocity
    • Outboard or Center wings: Cat. 4 w/Slip Clutch

    Deck Thickness: 3/16”
    Side Skirt: 1/4” x 8”
    Replaceable Skid Shoes: Standard
    Safety Chains: Standard (Front & Rear)
    Weight (Approx): 4900 lbs.
    Standard Tires: Laminated 600 x 9
    Dual Wingwheels: Option
    Hydraulic Level Lift: Option
    Deck Rings to Protect Deck: Standard
