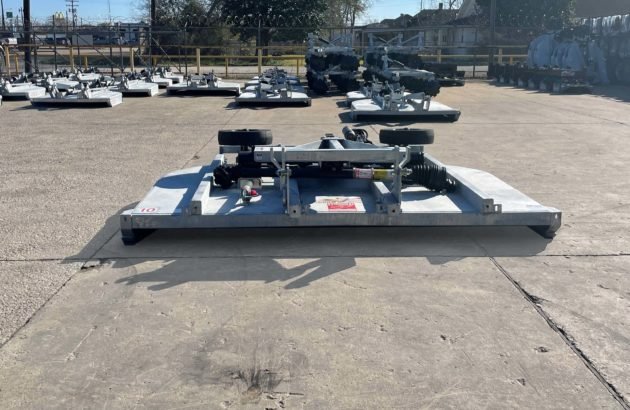

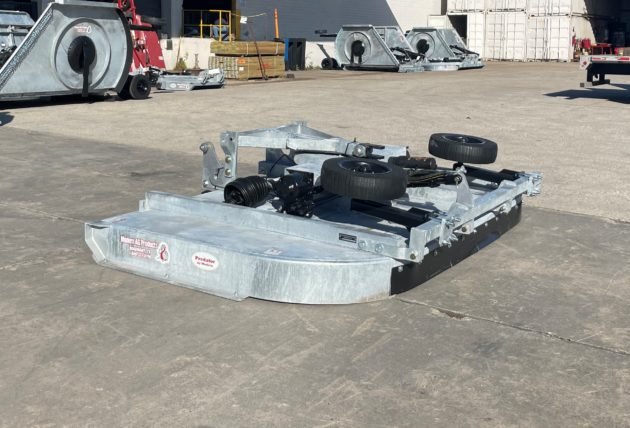

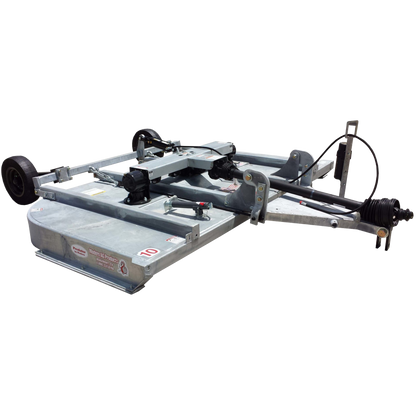

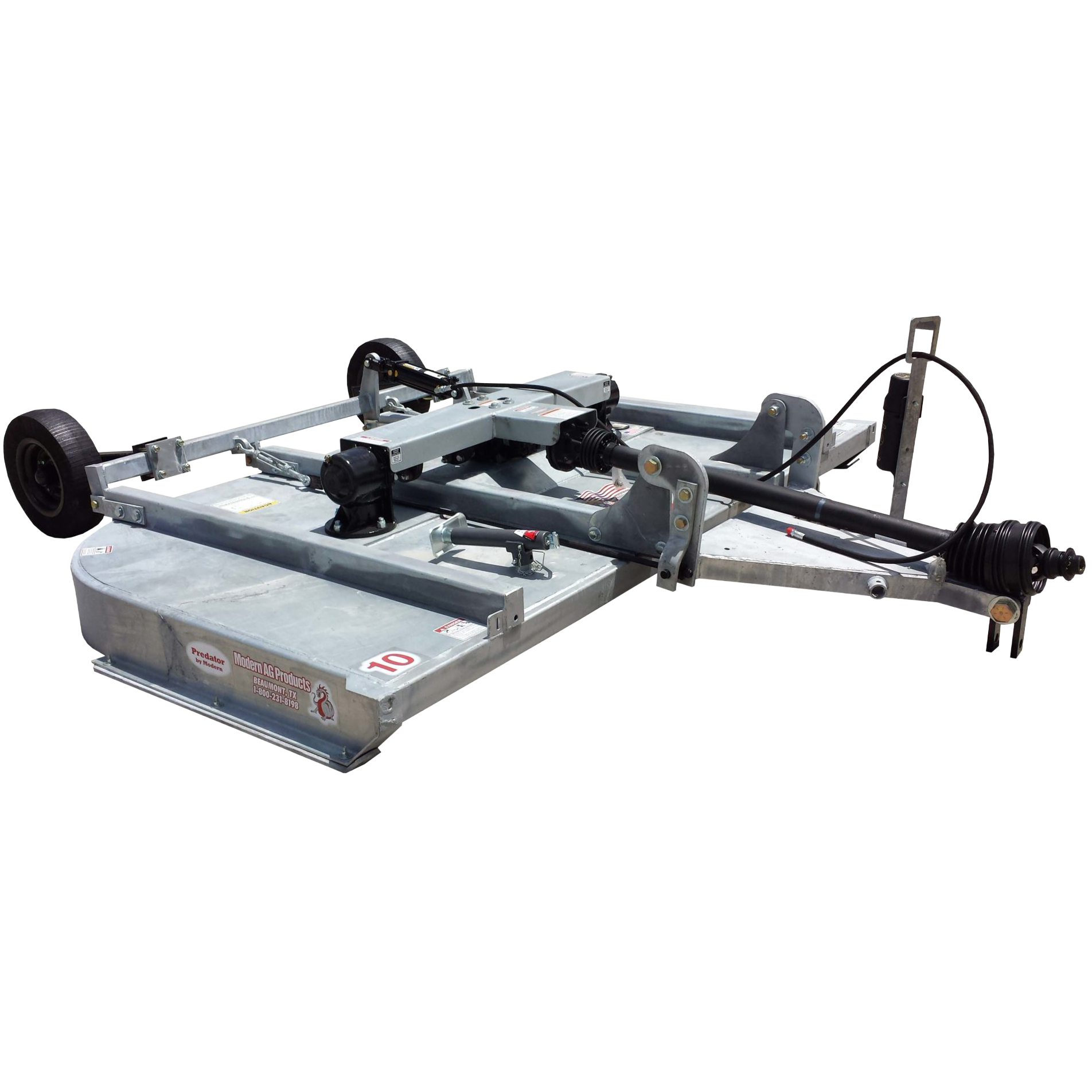

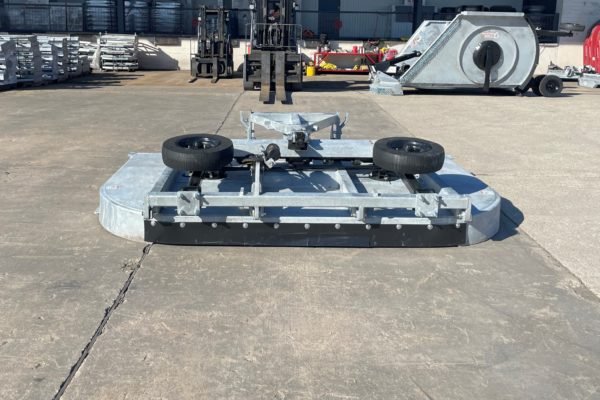

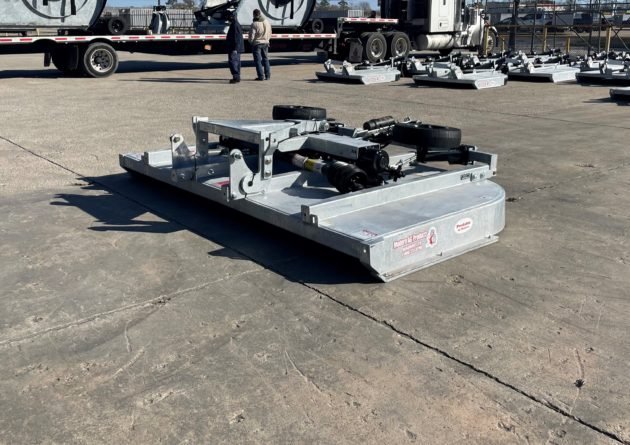

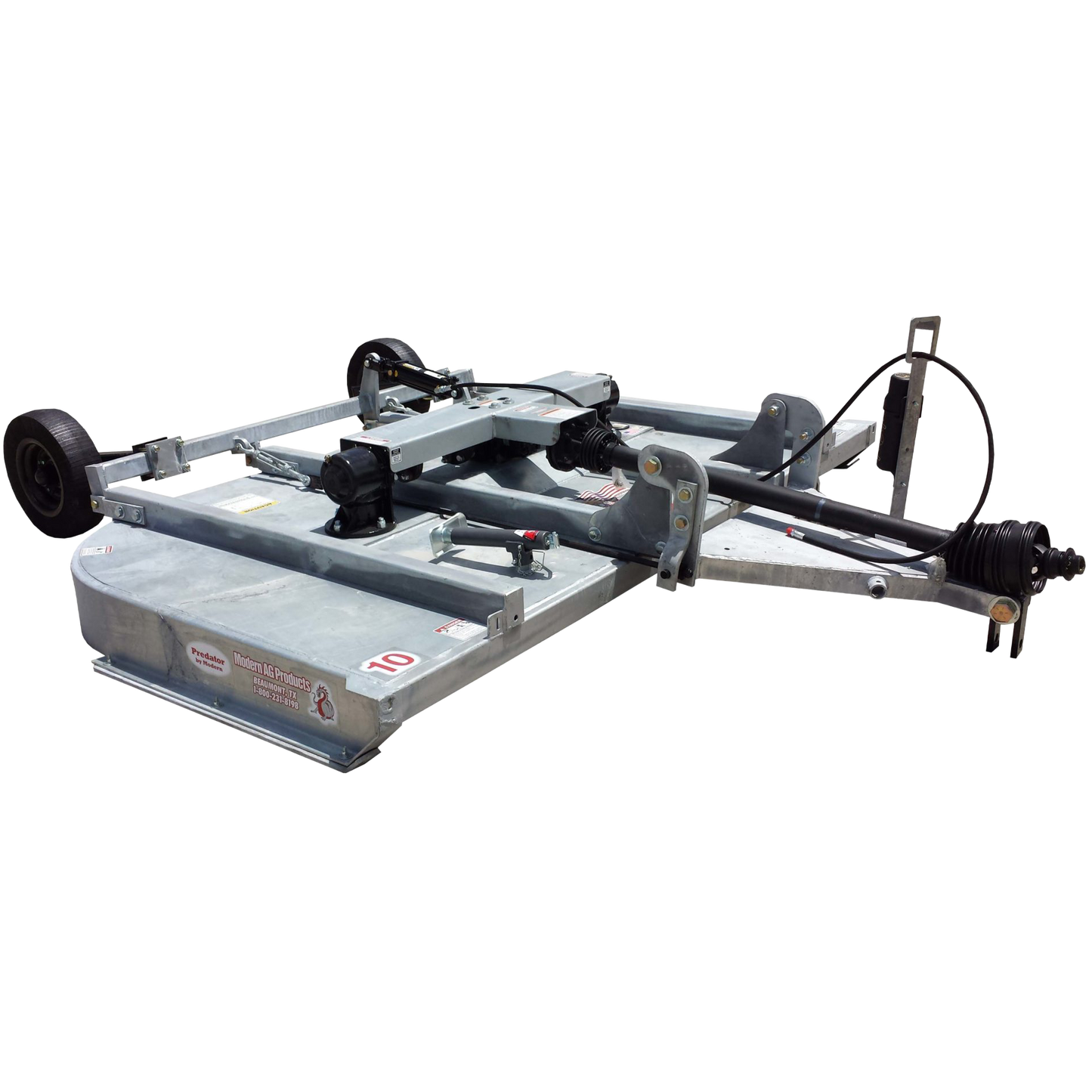

10' Predator 3PT - Multi Rotary Cutter

The Modern Ag 10' Predator is a CAT. 2 hitch with a 150 HP transfer gearbox with two 95 HP out board gearboxes. Modern’s durability and reliability is enhanced further through our hot-dipped galvanized deck & frame. Our smooth underdecks make for a more efficient mowing surface and less area for rust to begin.

The 10' Predator includes our Red Double Diamond Warranty: 5 Year limited warranty on gearbox and a 10 Year limited warranty on deck rust through.

Rubber guards are standard, front & rear chain guards optional, including an option for aircraft tires.

Features

• 1/2” gearbox plate
• Available in pull type & quick attach lift
• 140 hp outboard gearbox option available
• Cylinder and hoses are standard on pull type
• Heavy duty stump jumpers & slip clutch protected
• Laminated tailwheels
• Quick Attach
• 3/4” A Frames - QA
• Cat. 2 Hitch Lift Type

Specifications

Cutting Width . . . . . . . . . . . 120” Transport
Width. . . . . . . . . . . . . . . . . . 126”
Overall Width . . . . . . . . . . . 126”
Overall Length . . . . . . . . . . 97”
Overall Height . . . . . . . . . . 2” - 15”
Blade Overlap . . . . . . . . . . 3”
Jackstand . . . . . . . . . . . . . . Standard
Hitch . . . . . . . . . . . . . . . . . . QA Cat. II or Clevis
Blade Carrier . . . . . . . . . . . Pan Stump Jumpers
Horsepower Required (min):
Lift . . . . . . . . . . . . . . . . . . . . 60 hp
Pull . . . . . . . . . . . . . . . . . . . 50 hp
Main Gearbox or Divider Box* . . . . . . . . . 150 hp
Outboard Gearbox or Center & Wings* . . . . . . 95 hp
Output Shaft Diameter . . . 2-3/8”
Cut Capacity . . . . . . . . . . . . 3”
Blade Tip Speed:
540 . . . . . . . . . . . . . . . . . . . 16,519 FPM
1000 . . . . . . . . . . . . . . . . . . 15,491 FPM
Driveline Size:
Pull Type . . . . . . . . . . . . . . . Pull-Cat. 5 CV w/Slip Clutch
QA Lift Type . . . . . . . . . . . . QA-Cat. 4 w/Clutch
Deck Thickness . . . . . . . . . 3/16”
Side Skirt . . . . . . . . . . . . . . 1/4” x 8”
Front Safety Defl ectors . . . Chain Option
Rear Safety Defl ectors:
Rubber Guard Standard with Chain Option
Weight (Approx) :
QA. . . . . . . . . . . . . . . . . . . . . 2285 lbs.
Pull . . . . . . . . . . . . . . . . . . . 2670 lbs.
Standard Tires . . . . . . . . . . Laminated 600 x 9
Dual Tailwheels (Pull Type) Option
Hydraulic Level Lift (Pull Type) Standard
