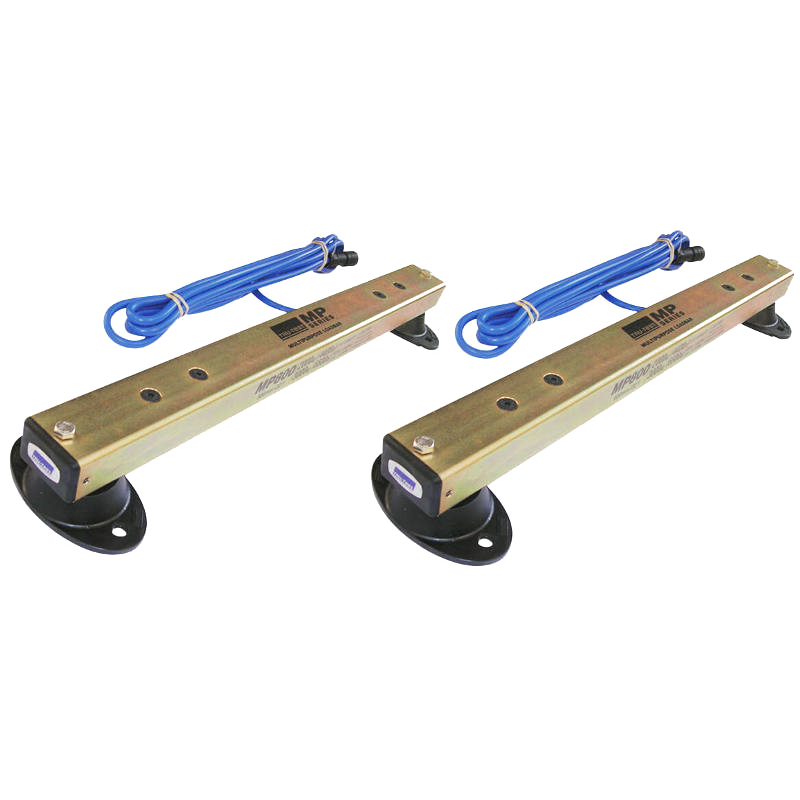

Tru-Test Scale MP800 Load Bars

Tru-Test Scale MP800 Load Bars

$1,517.00

These load bars have a 6600 lb capacity. They feature rubber feet to provide extra grip and shock dispersal and can be used with any Tru-Test weigh scales.

Tru-Test Scale MP800 Load Bars

Tru-Test Load Bars are regarded as the most reliable, rugged, and long-lasting weigh bars available. They are made of aircraft grade aluminum for ultimate resistance to corrosion, and are compatible with any Tru-Test indicator. The MP800 Load Bars have a total capacity of 6,600 pounds, with a live capacity of 4,400 pounds, and are designed for use under a variety of single animal portable applications, including alleyway platforms, cages, or small animal crates. These load bars feature zinc plated, gold passivated load bar housing for additional corrosion resistance, and the sealed load cell protects against moisture damage, allowing the load bars to remain outside.

Item #: MP800

Quantity:
Add To Cart

Features

  • MP800 Load Bars are constructed from aircraft grade aluminum for ultimate resistance to corrosion.

  • The zinc plated, gold passivated load bar housing provides additional corrosion resistance.

  • Sealed load cells protect against moisture damage, allowing the load bars to remain outside.

  • The MP800 Load Bars have a total capacity of 6,600 pounds, with a live capacity of 4,400 pounds.



  • These load bars can be used with any Tru-Test weigh scale without calibration.

  • The MP800 Load Bars are versatile and can be temporarily installed and easily transported between different weighing sites.

  • MP800 Load Bars are easy to set up. They simply require a firm level surface and a rigid crate or platform.

  • This product features a 2 year warranty.


Specifications

  • Foot Pad Dimensions: 170mm x 100mm

  • Cable Length: 5 m

  • Bar Section Width: 75mm

  • Live Capacity: 4,400 lbs



  • Load Cell Type: Aluminum Shear Beam

  • Total Capacity: 6,600 lbs
