Features

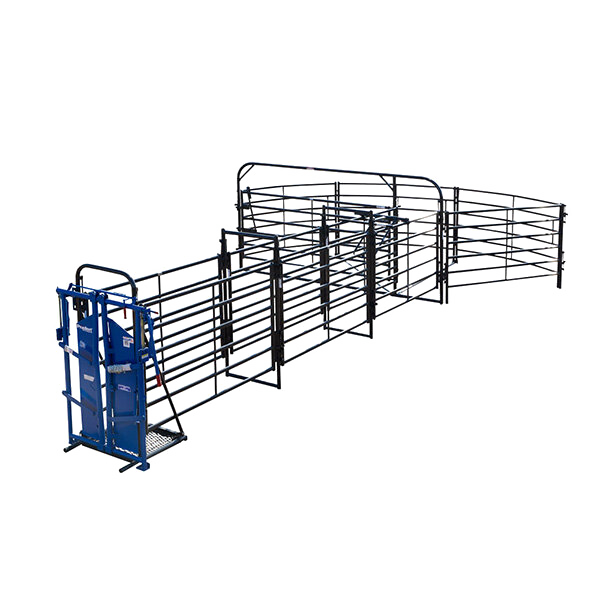

• This Premier Open Sweep is great for permanent corrals and versatile enough for portable applications.

• 135-degree sweep is easily reversible so that cattle can be loaded from either side of the working alley, and can be expanded into a complete corral system with the purchase of additional pieces.

• Model 91 Headgate operates in manual or automatic catch mode. Simply engage the automatic catch feature by moving the auto-catch lever forward to activate the spring. When in automatic mode, set the self-catch lever on the front of the headgate to select one of 4 opening widths.

• The yokes (or sides) of the headgate are contoured to fit securely around the neck of the animal, and the patented Infinite Locking System (guaranteed for life) allows for a perfect fit for every size animal with no adjustments necessary.

• HG91 is reversible to allow right or left-handed operation.

• By pivoting our 10’ wide sweeping bow gate at the inside corner of the alley entrance, livestock flow is improved by eliminating corners that are found in other sweep systems.

• “Tough Enough for Cattle, Safe Enough for Horses,” this sweep is constructed from our number one selling cattle panel, the Premier Panel.

• Premier Panels are constructed from our patented Quadraform™ tubing to allow for maximum strength and flexibility. These panels feature single piece drilled stays to provide extra stability.

• Sturdy pin connectors provide secure connection points that allow for quick and easy assembly of the sweep tub and alley components.

• The 10’ wide Premier Sweep Gate works as the sweep gate, pushing cattle into the working alley. This gate features a 7’ tall bow frame for added stability and a Double Piston Lever Latch.

• The alley frame is designed to allow for a secure connection to Priefert’s Premier Alley Panels with pin connectors.

• Powder-coated Alley Frames help maintain the strength and support of the 28” wide fixed alley.

• With no tools required, the effective height of the “no-back” Alley Stop can be quickly set to prevent the backing of bulls, cows, and calves.

• Architectural Grade Powder Coat Finish with UV inhibitors add years of life to your investment by helping the product resist rust, scratches, and fading.

Specs

• Alley Length: 24’

• Alley Frame Inside Height: 74.75”

• Panel Height: 64”

• Inside Alley Width: 28”

• Bow Gate Frame Height: 7’ (approximate height)

• Premier Sweep Gate constructed from 1.9” OD Round™ 16 gauge tubing with 1.050” OD single piece vertical stay, bow frame constructed from 2.375” OD 12 gauge tubing.

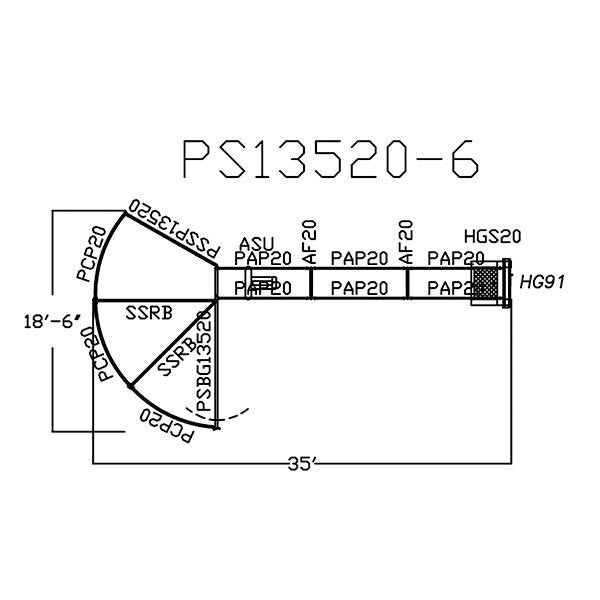

• PS135-6 includes: 1- 10’ Premier Sweep Gate with Alley Frame (PSBG13520), 3 – Premier Sweep Curve Panels (PCP20), 1 - Premier Sweep Straight Panel (PSSP13520), 2 – Sheeted Sweep Radius Bars (SSRB), 6 – 8’ Premier Alley Panels (PAP20), 2- Alley Frames (AF20), and 1- “no-back” Alley Stop (ASU), 1 – Model 91 Headgate (HG91), 1 – Headgate Stand (HGS20)

• HG91 dip painted Blue

• All other components feature Architectural Grade Powder Coat Finish

• Color: Grey
