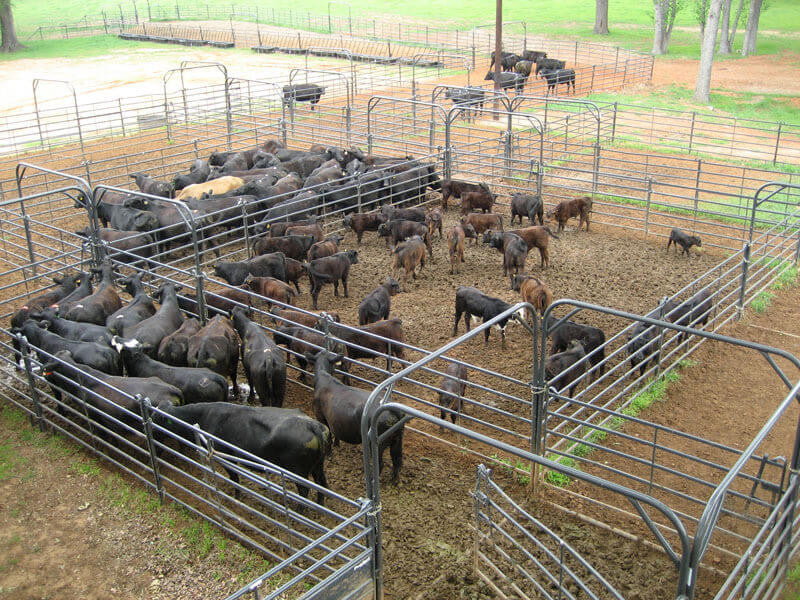

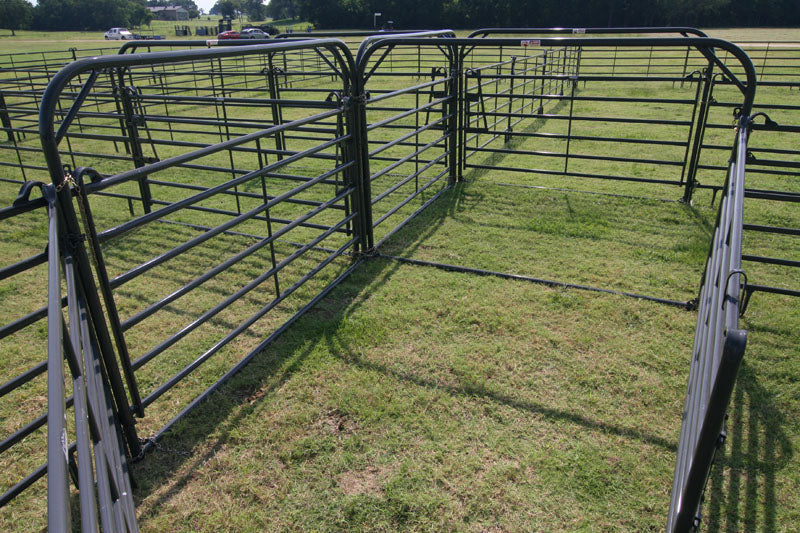

This gate is available with a 7’ tall or 9’ tall bow frame and can be used across alleys, as an entry gate into holding pens, or as the sweep gate for our Premier Sweeps.

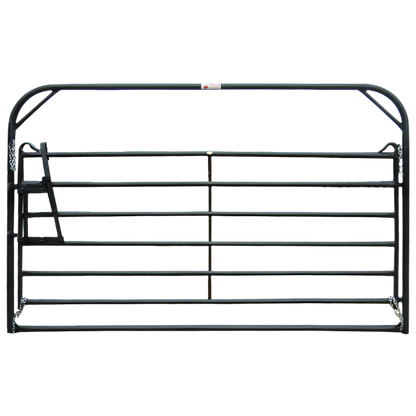

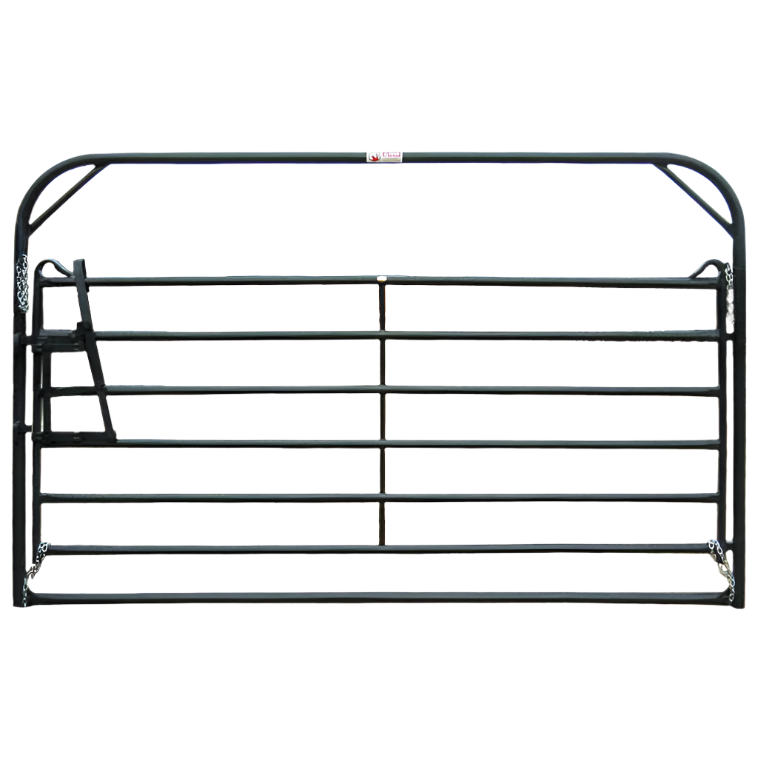

PFS10, PFS109 10' Premier Free Swing Bow Gate
Our 10’ Premier Free Swinging Bow Gates are ideal for use as an alley, access, or sorting gates. The PFS10 is the standard sweep gate included in Priefert’s Premier Open Sweep Systems. As part of our number one selling line of cattle panels, these gates are “Tough Enough for Cattle, Safe Enough for Horses.” Each gate is constructed from our patented Quadraform™ tubing to allow for maximum strength and flexibility and each features a single piece vertical stay fitted through drilled rails to further increase the structural integrity. The Architectural Grade Powder Coat Finish helps the product resist rust, scratches, and fading to add years of life to your investment.
While the PFS10 is the standard sweep gate included in Priefert’s Premier Open Sweeps, our 10’ Premier Free Swinging Bow Gates are also ideal for use as an alley, access, or sorting gates.

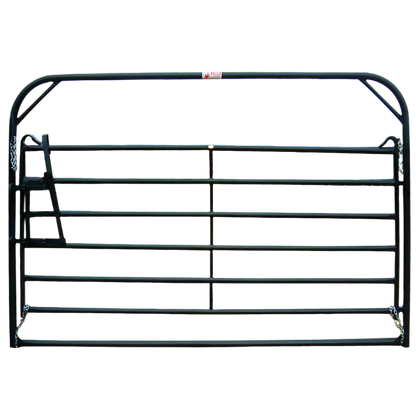

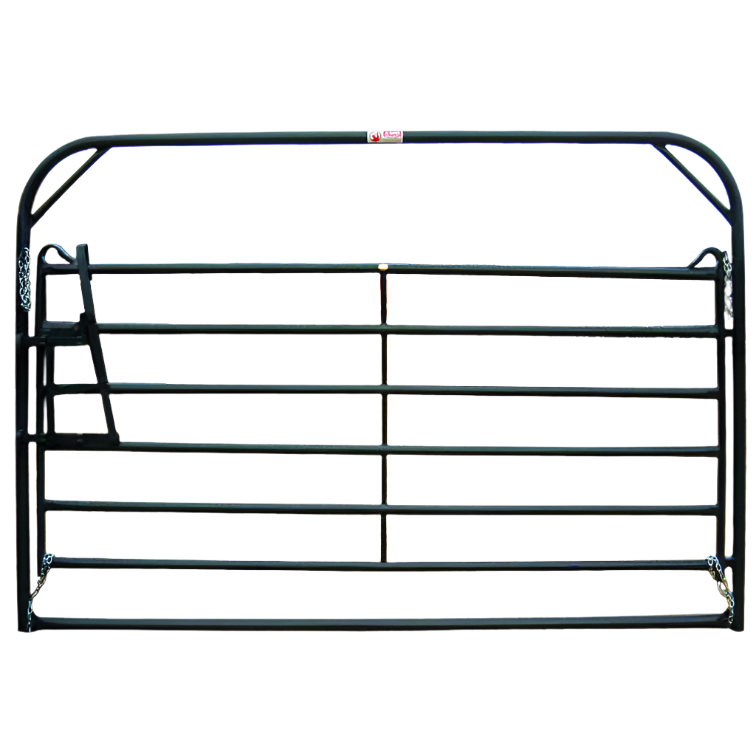

The 7’ tall bow frame of the PFS10 is ideal for “walk-thru” applications, while the PFS109 features a 9’ tall bow frame that allows for “ride-thru” access.
“Tough Enough for Cattle, Safe Enough for Horses,” these bow gates are part of our number one selling line of cattle panels and accessories and is designed for use in crowding applications.
The gate is constructed from our patented Quadraform™ tubing to allow for maximum strength and flexibility, and features a single piece vertical stay fitted through drilled rails to provide extra strength.
Chain connectors offer increased versatility for connecting to panels and allow for easy connection to existing structures.
Architectural Grade Powder Coat Finish with UV inhibitors add years of life to your investment by helping the product resist rust, scratches and fading.
This durable bow gate provides added strength and stability to alleys and pens.
Specifications
Overall Width: 126.5”
Number of gate rails: 6
Bow gate frame constructed from 2.375” OD 11 gauge tubing
Gate constructed from 16 gauge Quadraform™ tubing
Vertical stay constructed from 1.050” OD steel tubing, fitted through drilled rails
Double Piston Lever Latch included
Architectural Grade Powder Coat Finish
Color: Grey
All weights are approximate
PFS10 is the standard sweep gate included with Priefert’s Premier Open Sweeps.
Number of stays in the gate: 1
